ICOOH IC5 BMW Front Big Brake Kit
The ICOOH IC5 BMW front brake kit is developed for selected BMW chassis requiring responsive front braking control, consistent pedal feedback, and improved thermal stability during repeated braking. It combines an IC5 6-piston front caliper with 330×32mm or 355×32mm brake disc options for 17-inch and 18-inch wheel applications.

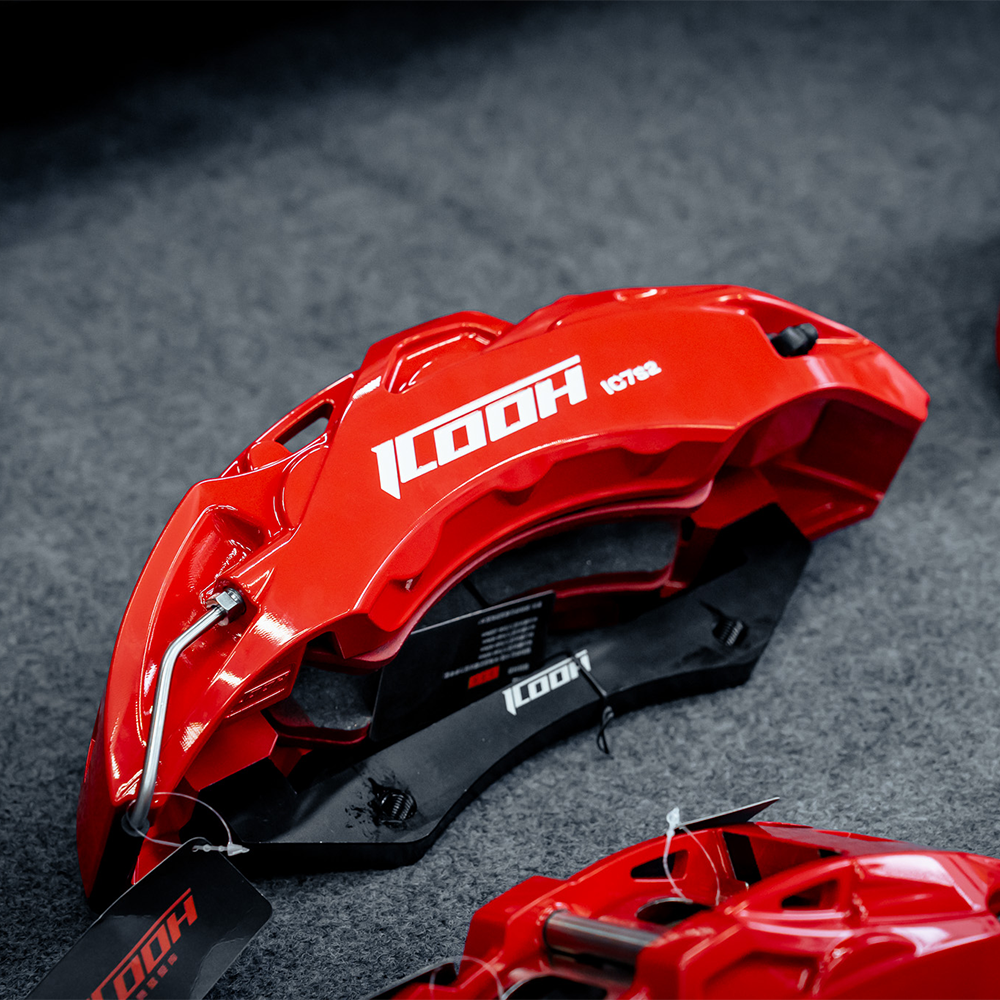

IC5 6-Piston Caliper
Six pistons distribute hydraulic pressure across the brake pad to support controlled response, predictable pedal modulation, and consistent pad contact.
330mm / 355mm Options
Select a 330×32mm or 355×32mm front brake disc according to the BMW chassis, factory brake package, wheel size, and actual internal clearance.
BMW Chassis Fitment
Applications are organized by model, production year, chassis, front hub structure, original braking system, and wheel specification.
17–18 Inch Wheel Matching
The 330mm configuration is generally matched with 17-inch wheels, while the 355mm configuration is generally matched with 18-inch wheels.
The more compact IC5 configuration for selected 17-inch wheel applications. Actual fitment depends on the wheel offset, inner barrel, spoke profile, front hub, and caliper template.
The larger IC5 configuration for selected 18-inch wheel applications. Some larger BMW chassis and M models in this listing are available only with the 355mm option.
Brake Kit Specification
| Brand | ICOOH |
|---|---|
| Vehicle Brand | BMW / selected MINI shared-platform applications |
| Brake Kit Series | IC5 Series |
| Installation Position | Front axle |
| Caliper Type | 6-piston front brake caliper |
| Caliper Weight | Approximately 3.2kg per caliper |
| Brake Disc Options | 330×32mm / 355×32mm |
| Recommended Wheel Guide | 17-inch for 330mm / 18-inch for 355mm |

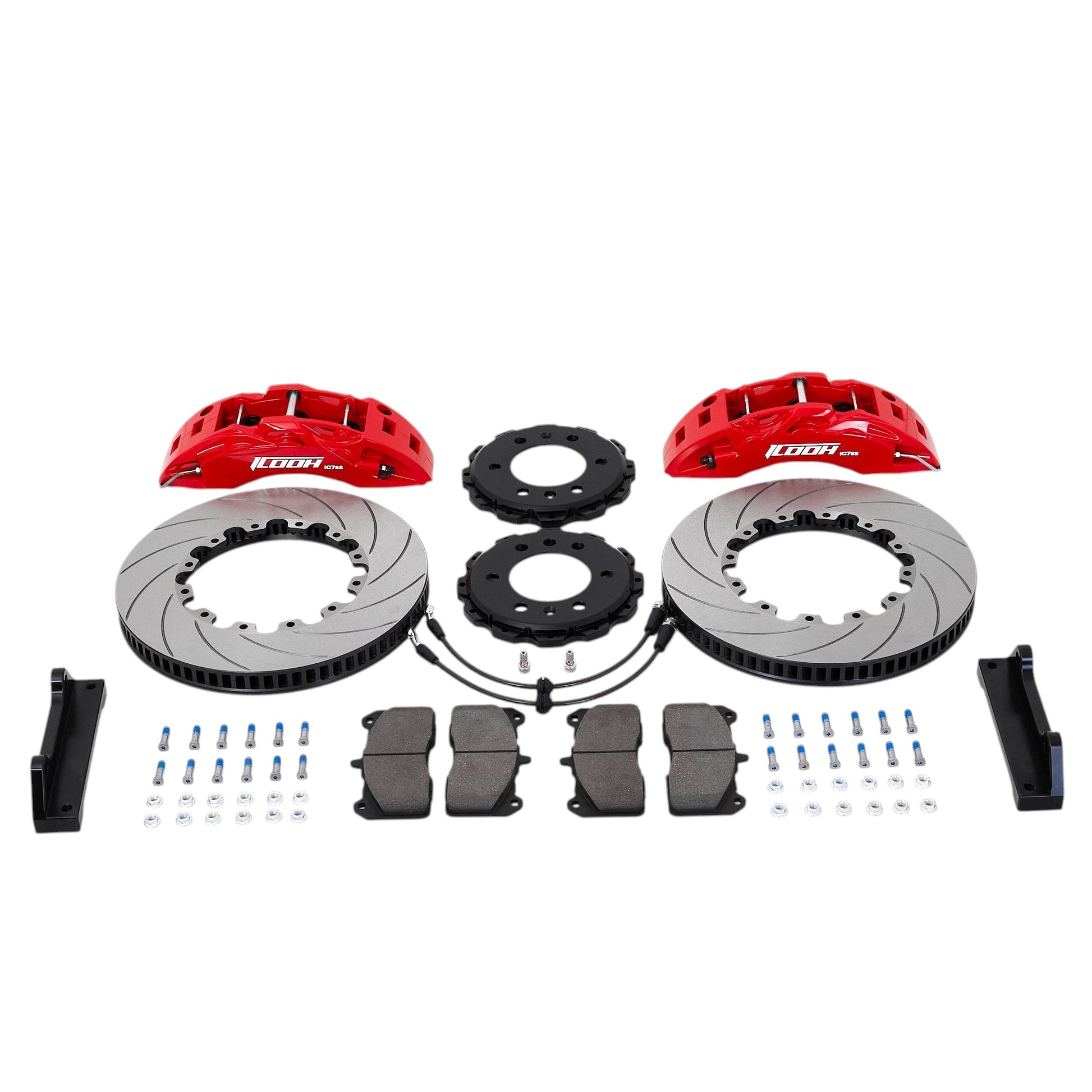

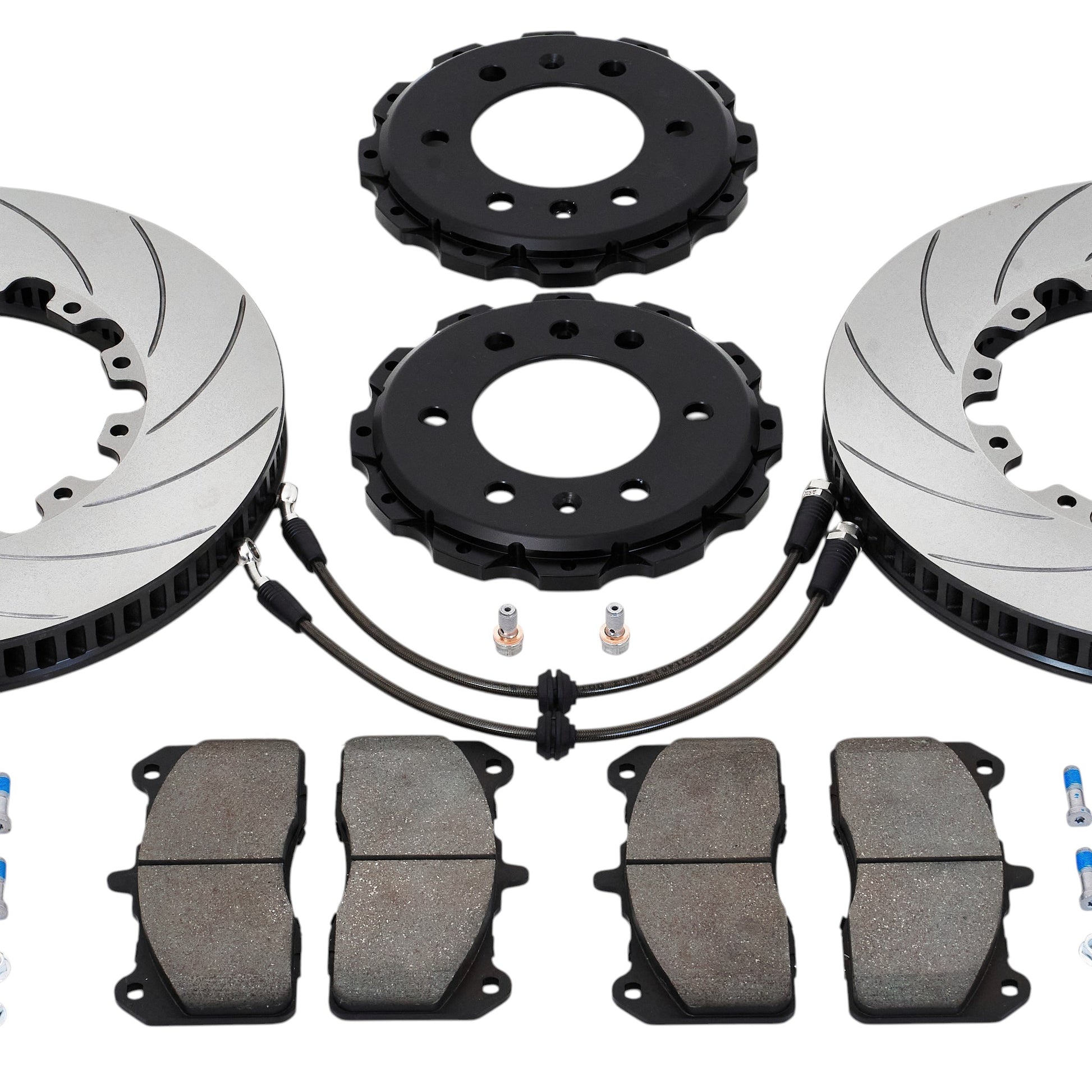

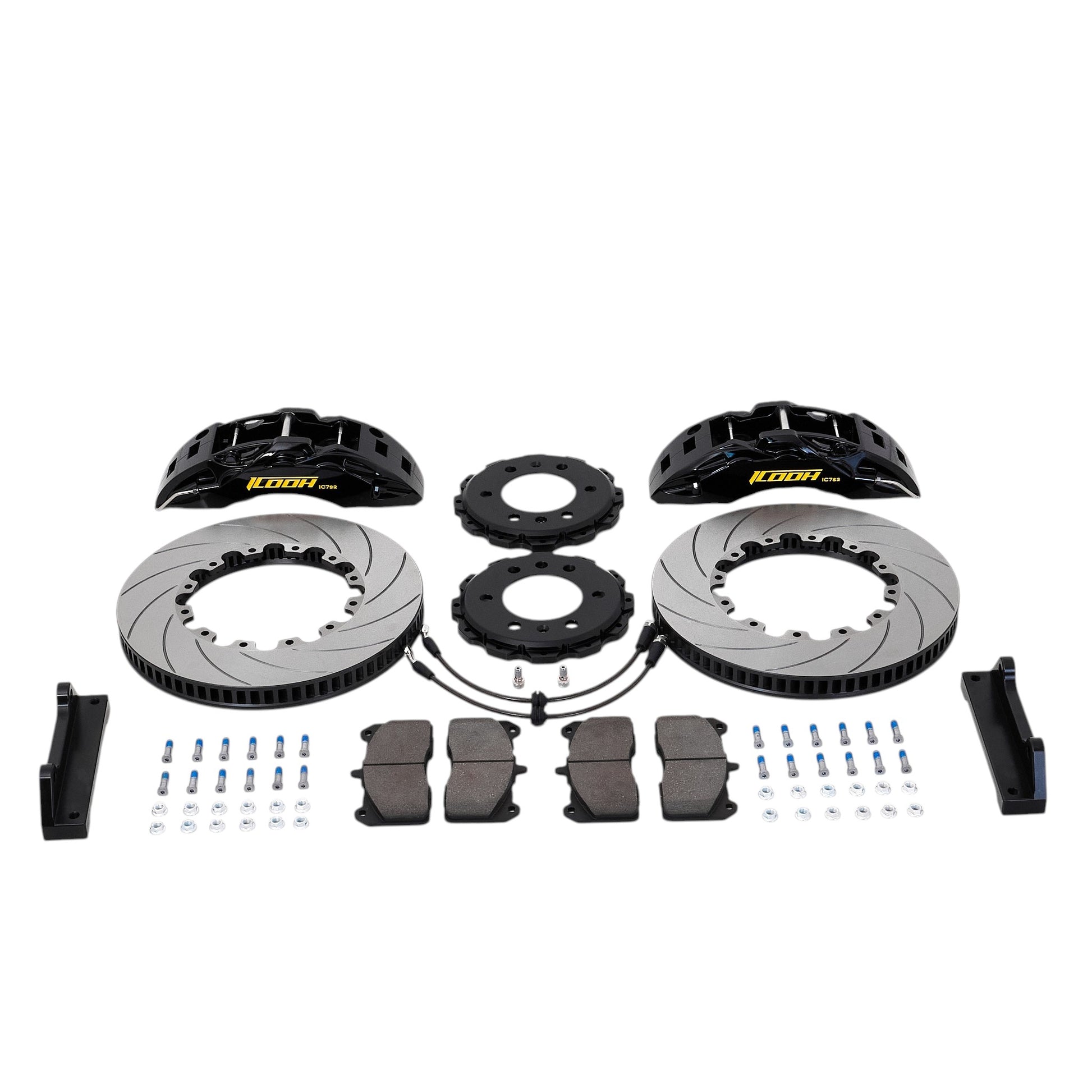

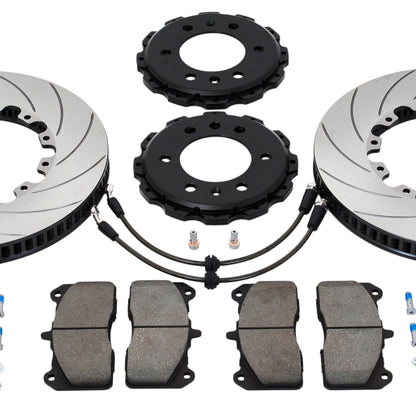

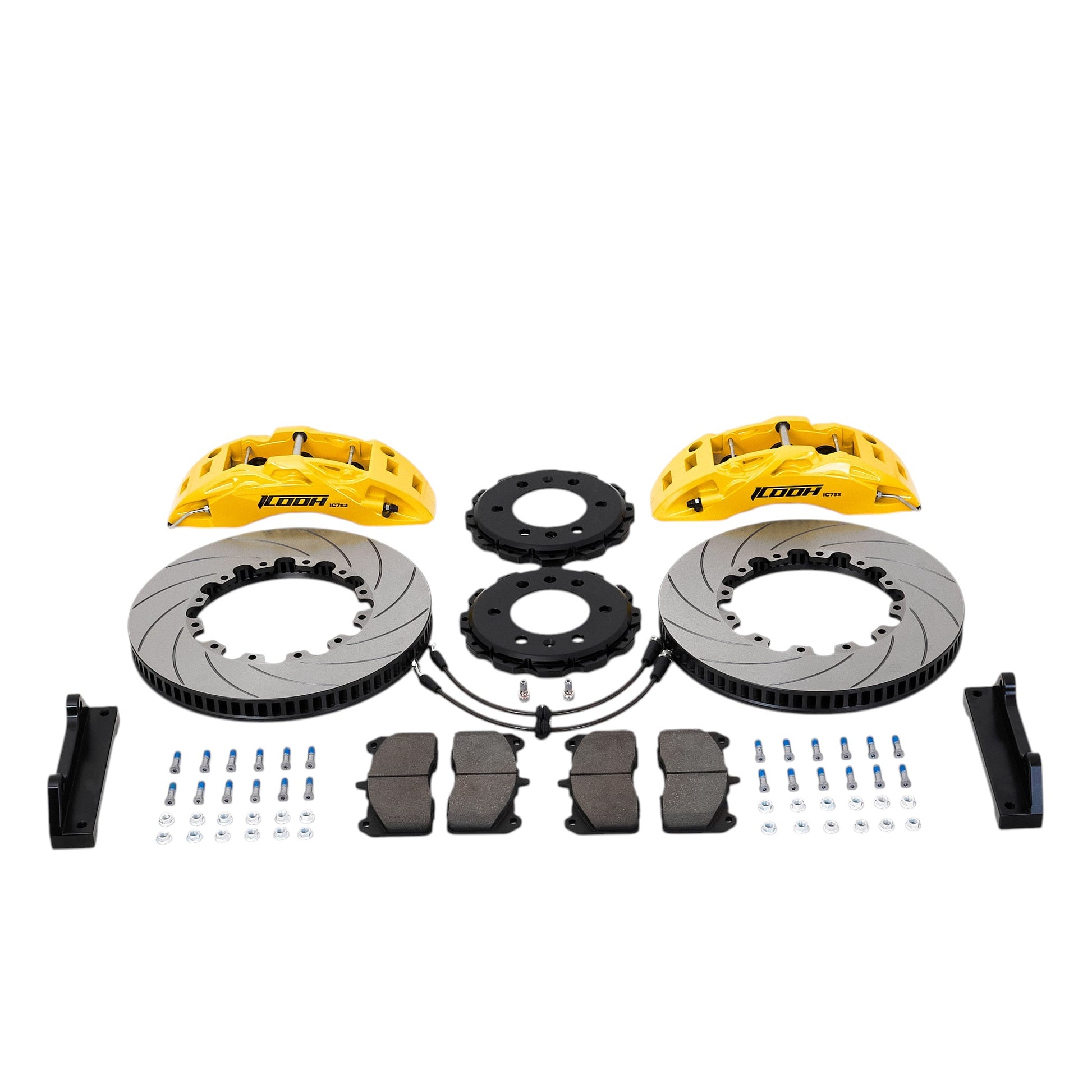

| Standard Kit Components | 2 brake calipers, 2 brake discs, 2 brake lines, 4 brake pads, and 2 center bells |
| Brake Pad Configuration | Matched IC5 front brake pads; exact compound is confirmed according to the selected kit |
| Brake Line | Composite steel-wire high-pressure brake lines |
| Brake Rotor Options | High-temperature carbon alloy or carbon-ceramic rotor, subject to the selected configuration |
| Available Caliper Colors | Ruby Red, Yellow, Tiffany Blue, Rock Gray, and Night Black, subject to availability |
| Fitment Type | Vehicle-specific front brake upgrade with mandatory chassis, hub, wheel, bracket, and caliper-clearance confirmation |
BMW IC5 Front Brake Kit Fitment List
The applications below are consolidated from the supplied BMW IC5 fitment workbook. Duplicate 330mm and 355mm records have been merged. Some larger BMW platforms are validated only with the 355×32mm configuration. Production year or wheel diameter alone does not confirm compatibility.
| BMW model / chassis | Year | Position | Disc options | Wheel guide | Fitment notes |
|---|---|---|---|---|---|
| BMW 1 Series E81 / E82 / E87 / E88 | 2003–2013 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm the exact chassis, original front brake package, wheel offset, and spoke clearance. |
| BMW 1 / 2 Series F20 / F21 / F22 / F23 | 2010–2019 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Includes selected F20 applications from 2015–2019. Confirm the factory brake package. |
| BMW 1 Series F40 / F52 and 2 Series F44 / F45 / F46 | 2016–2020 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Front-wheel-drive-platform applications require confirmation of the exact knuckle, hub, and bracket arrangement. |
| BMW 3 Series E90 / E91 / E92 / E93 | 2004–2013 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm sedan, wagon, coupe, or convertible chassis and the original front braking system. |
| BMW E92 / E93 M3 | 2010–2014 | Front | 355×32mm | 18-inch+ | M3-specific application. Confirm the factory brake package and actual wheel clearance. |
| BMW 3 / 4 Series F30 / F31 / F32 / F33 / F34 / F35 / F36 | 2011–2019 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm standard, M Sport, or factory performance brake package before ordering. |
| BMW 3 / 4 Series G20 / G21 / G28 / G22 / G23 | 2020+ | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Related source fitment includes selected G42 2 Series and G29 Z4 applications. Confirm the complete chassis code. |
| BMW E36 M3 | 1990–1999 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Older performance chassis. Confirm hub dimensions, suspension setup, and aftermarket wheel clearance. |
| BMW E46 / E46 M3 | E46: 2000–2005; M3: 1996–2006 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Shared records also reference selected E36, E85, and E86 platforms. Confirm the exact model before ordering. |
| BMW E39 | 1996–2003 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm model, front hub structure, wheel offset, and spoke-to-caliper clearance. |
| BMW E60 | 2003–2007 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm the exact model, production year, and original front brake package. |
| BMW E34 M5 | 1992–1995 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm existing wheel, suspension, hub, and previous brake-conversion history. |
| BMW 7 Series E66 | 2003–2008 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Large-body application. Verify the original front rotor size and wheel clearance. |
| BMW 5 Series / 5 GT F07 / F10 / F11 / F18 | 2008–2017 | Front | 355×32mm | 18-inch+ | The finalized platform record specifies the 355mm configuration. Confirm the exact chassis and bracket. |
| BMW 6 / 7 Series F12 / F13 / F06 / F01 / F02 / F03 / F04 | 2008–2016 | Front | 355×32mm | 18-inch+ | Confirm body style, front hub, factory braking system, and wheel specification. |
| BMW 5 / 6 / 7 Series G30 / G31 / G32 / G38 / G11 / G12 | 2016+ | Front | 355×32mm | 18-inch+ | Confirm the exact production date, original brake package, and wheel clearance. |
| BMW New 5 Series G68 | 2023+ | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | New-generation application. Vehicle-specific confirmation and bracket verification may be required. |
| BMW M2 F87 / M3 F80 / M4 F82 | 2012–2019; confirm exact model | Front | 355×32mm | 18-inch+ | Confirm whether the vehicle retains the standard iron braking system or another factory performance package. |
| BMW M3 G80 | 2021+ | Front | 355×32mm | 18-inch+ | Confirm the original brake package and actual wheel clearance before ordering. |
| BMW X1 E84 | 2009–2015 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm the exact production year, front hub, and wheel spoke clearance. |
| BMW X1 F48 / F49 | 2016–2021 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm the exact chassis, front knuckle, bracket version, and wheel clearance. |
| BMW X2 F39 | 2019–2021 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm the front hub, original brake system, and wheel specifications. |
| BMW X3 F25 / X4 F26 | 2011–2017 | Front | 355×32mm | 18-inch+ | Confirm the original front brake package, wheel offset, and spoke-to-caliper clearance. |
| BMW X3 / X4 G01 / G02 / G08 | 2017+ | Front | 355×32mm | 18-inch+ | Shared records also reference selected 8 Series front platforms. Confirm the exact chassis. |
| BMW X5 E53 | 2000–2006 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm the original front brake specification and actual wheel clearance. |
| BMW X5 / X6 E70 / E71 / E72 / F15 / F16 | 2008–2018 | Front | 355×32mm | 18-inch+ | Confirm the steering knuckle, bracket height, factory braking system, and wheel clearance. |
| BMW Z4 E89 | 2009–2015 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm the original front hub, wheel offset, and spoke clearance. |
| BMW Z4 G29 | 2017–2020 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Shared source data also references selected G20, G22, G28, G42, and Toyota Supra platforms. |
| MINI R50 / R53 / R55 / R56 / R57 / R58 | 2000–2015 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Shared BMW Group platform application. Confirm the exact MINI chassis and wheel specification. |
| MINI Countryman R60 | 2010–2017 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Includes selected Countryman Cooper S ALL4 applications. Confirm drivetrain and wheel clearance. |
| MINI F54 / F55 / F56 / F57 / F60 | 2014–2020 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | Confirm the exact MINI model, front hub, factory brake package, and wheel clearance. |
| Zinoro 60H | 2017 | Front | 330×32mm / 355×32mm | 17-inch / 18-inch | BMW shared-platform application. Final vehicle-specific confirmation is required. |
Fitment Confirmation Before Checkout
Matching the BMW model, production year, or wheel diameter does not automatically confirm brake-kit compatibility. BMW vehicles may use different front hubs, steering knuckles, factory brake packages, wheel offsets, and spoke profiles within the same chassis family.
- Confirm the exact BMW model and production year.
- Provide the complete chassis code and VIN where possible.
- Confirm the engine, drivetrain, M Sport, M, or standard brake configuration.
- Select the 330×32mm or 355×32mm brake disc option.
- Provide the wheel diameter, width, and offset.
- Confirm whether the wheels are OEM or aftermarket.
- Measure the inner wheel barrel and spoke-to-caliper clearance.
- Confirm the original front caliper and brake disc specification.
- Disclose spacers, hub changes, suspension modifications, or previous brake upgrades.
- Provide clear photos of the wheel face and original front brake assembly.
The 330×32mm configuration is generally recommended for 17-inch wheels, while the 355×32mm configuration is generally recommended for 18-inch wheels. Wheel diameter alone does not guarantee clearance. Wheel offset, inner-barrel diameter, spoke profile, mounting bracket, and the complete caliper envelope must all be verified before ordering.
Confirm Your BMW IC5 Fitment
Send your BMW model, year, chassis code, factory brake package, preferred brake disc size, wheel specifications, and front brake photos before checkout. ICOOH can help verify the appropriate IC5 configuration for your vehicle.
