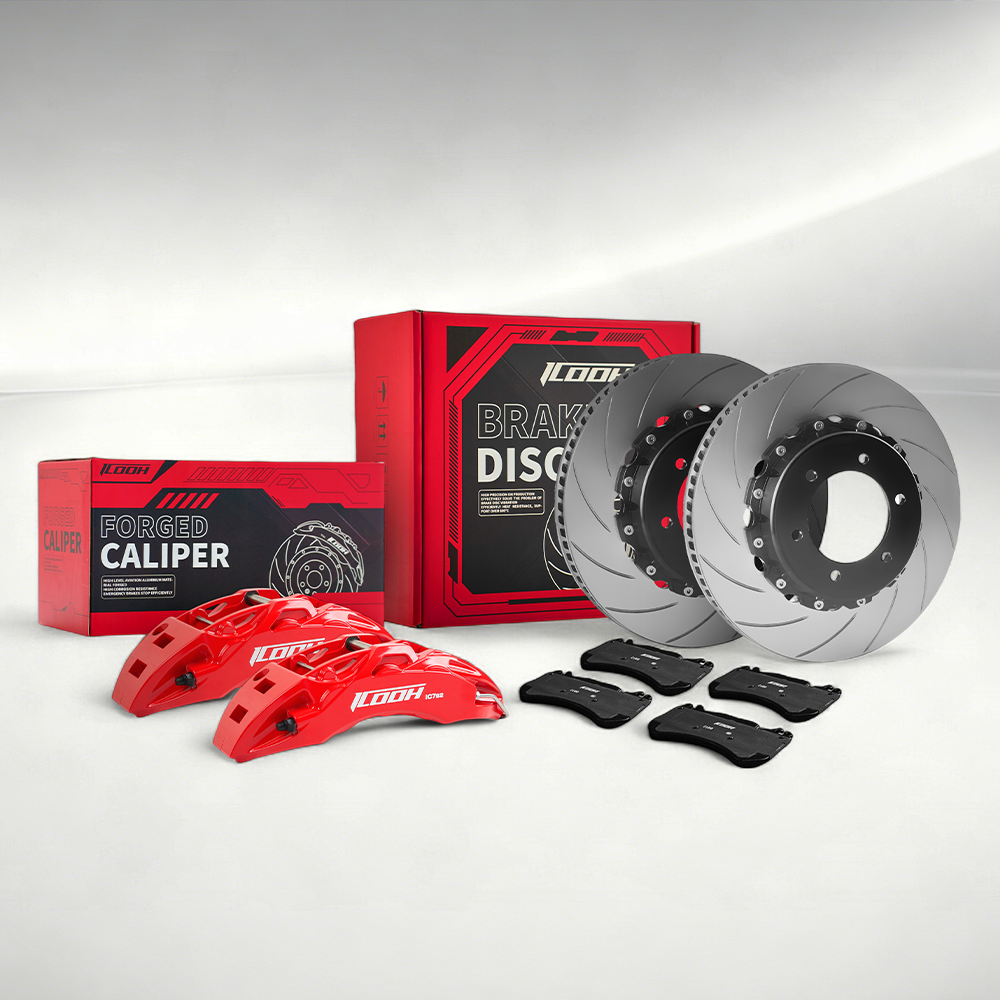

ICOOH IC7 Audi Front Big Brake Kit
The ICOOH IC7 Audi front brake kit is developed for selected Audi chassis requiring stronger front braking performance, responsive pedal control, and improved thermal capacity during repeated braking. It combines a two-piece forged aluminum IC7 6-piston front caliper with 380×32mm or 405×32mm brake disc options for 19-inch and larger wheel applications.
Two-Piece Forged Caliper
The IC7 uses a two-piece forged aluminum construction designed to balance caliper rigidity, reduced mass, and consistent braking control.
6-Piston Front Design
Six pistons distribute clamping pressure across the brake pad to support controlled response, pedal modulation, and even pad contact.
380mm / 405mm Options
Select 380×32mm or 405×32mm according to the Audi chassis, original braking system, wheel diameter, offset, and available internal clearance.
Audi Chassis Fitment
Applications are organized by model, year, chassis, drivetrain, front hub structure, original brake package, and wheel specification.

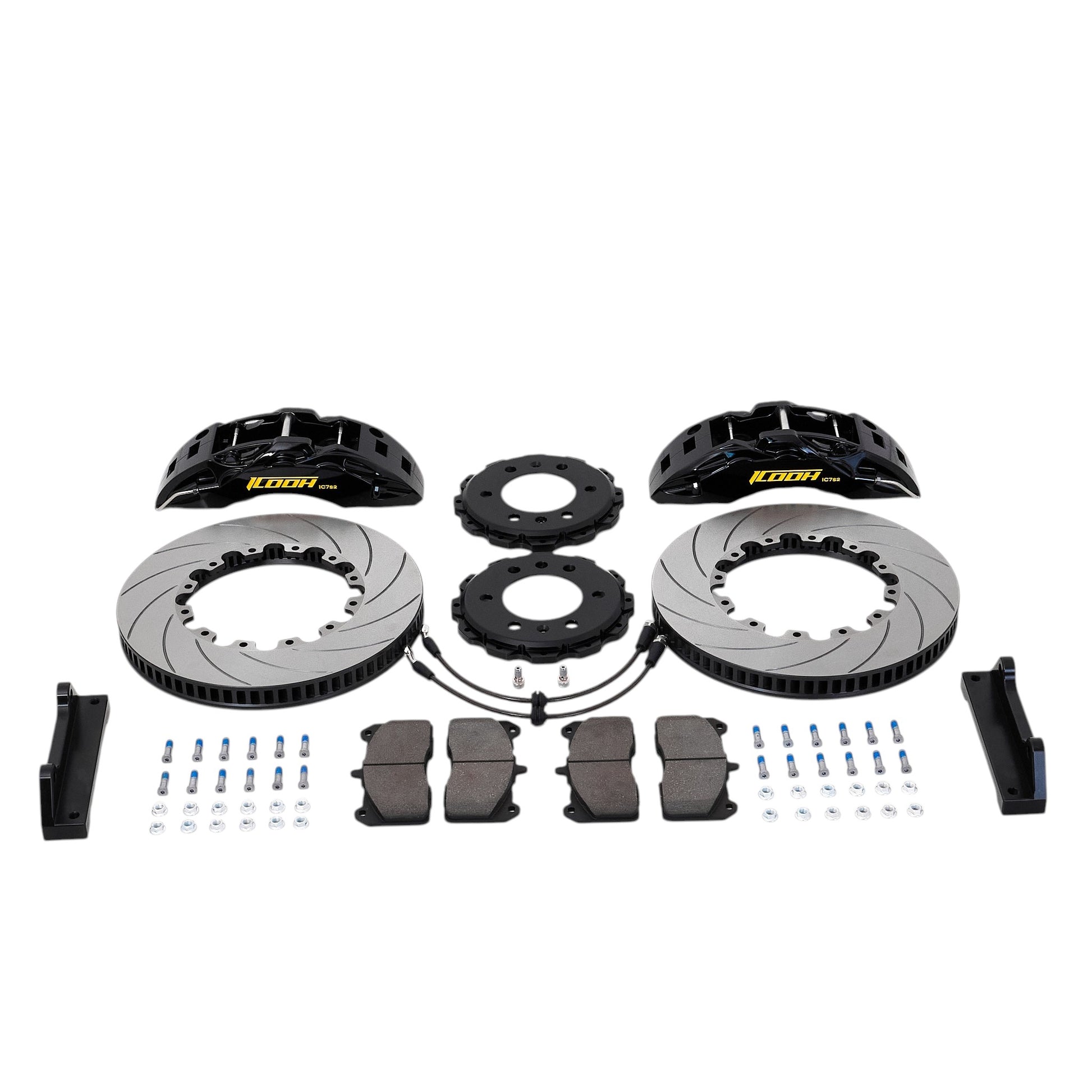

The main IC7 configuration for selected 19-inch wheel applications. Confirm the inner barrel diameter, spoke profile, wheel offset, hub position, and caliper template before ordering.

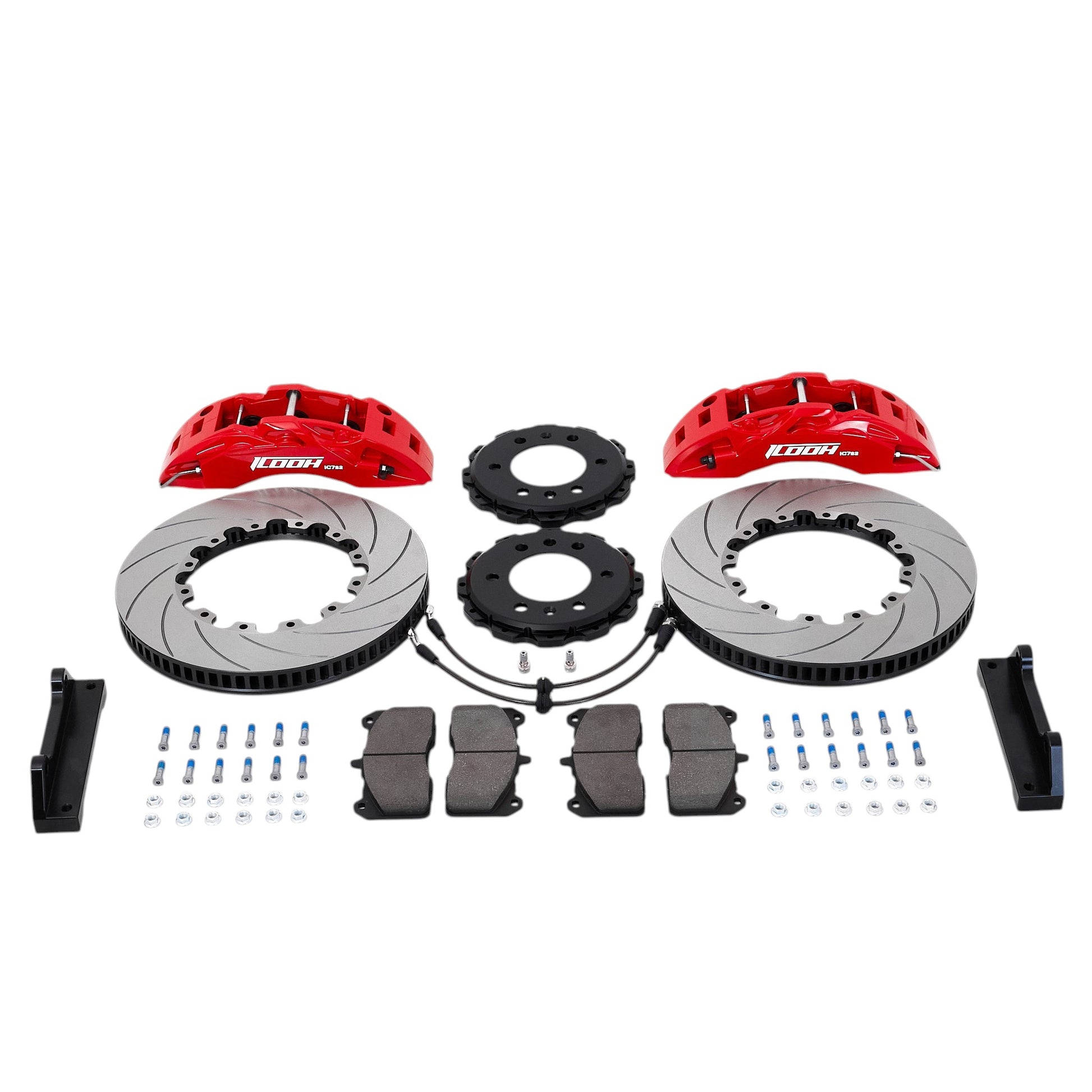

The larger IC7 configuration for selected 20-inch and larger wheel applications. The final fitment depends on the vehicle bracket, rotor assembly, wheel design, and available clearance.
Brake Kit Specification
| Brand | ICOOH |
|---|---|
| Vehicle Brand | Audi |
| Brake Kit Series | IC7 Series |
| Installation Position | Front axle |
| Caliper Construction | Two-piece forged aluminum alloy |
| Caliper Type | 6-piston front brake caliper |
| Brake Disc Options | 380×32mm / 405×32mm |
| Recommended Wheel Guide | 19-inch for 380mm / 20-inch or larger for 405mm |
| 380mm Disc Reference | B022141-DIC 380×32 D60 double-row drilled and straight-slotted disc |
| 405mm Disc Reference | B0292892-DIC 405×32 D60 double-row drilled and straight-slotted disc |
| Brake Pad Reference | D032001-DIC-DR6(IC5) HP1000 brake pad |
| Suitable Applications | Selected Audi sedans, coupes, wagons, SUVs, S models, RS models, quattro models, and allroad platforms |
| Fitment Type | Vehicle-specific front brake upgrade with mandatory chassis, drivetrain, hub, wheel, and caliper-clearance confirmation |
Audi IC7 Front Brake Kit Fitment List
The applications below are consolidated from the supplied Audi IC6/IC7 fitment data. IC7 uses 380×32mm and 405×32mm brake disc configurations. Production year and wheel diameter alone do not confirm compatibility; the chassis, drivetrain, front hub, bracket, original brake package, and actual wheel clearance must also be checked.
| Audi model / chassis | Year | Position | Disc options | Wheel guide | Fitment notes |
|---|---|---|---|---|---|
| Audi A1 8X1 / 8XA | 2010–2018 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Compact-platform application. Carefully verify wheel width, offset, inner barrel, and spoke-to-caliper clearance. |
| Audi A3 / S3 | 2014–2020 | Front | 380×32mm | 19-inch+ | The supplied scanned record validates the 380mm configuration. A 405mm setup requires separate confirmation. |
| Audi A4 / A4L / A5 B9 | 2016–2021 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Related fitment data includes selected S4 B9/8W5, A5 F5, Q5 FY, A6 Avant C8, A7 4KA/4G9, and Q7 4M applications. |
| Audi A4 / A4L / A5 / S4 / S5 B8 | 2009–2016 | Front | 380×32mm; 405×32mm subject to confirmation | 19-inch; 20-inch confirm | Different B8 records use different larger-rotor assemblies. Confirm the exact chassis, bracket, and rotor assembly. |
| Audi S4 / RS4 / S5 / RS5 | 2020+ | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Confirm the exact production year, trim, factory brake package, and actual wheel clearance. |
| Audi A4 B6 | 2002–2005 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Related data references an A4 B7 application. Confirm the exact chassis, hub, and wheel setup. |
| Audi A6 / A6L C7 Sedan | 2012–2018 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | This scanned application excludes the C7 wagon. Use the dedicated allroad fitment for Avant or allroad vehicles. |
| Audi A6 C7 allroad quattro 4GH / 4GJ | 2012–2018 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Dedicated C7 allroad quattro application. Confirm the original front brake package and wheel clearance. |
| Audi A6 / A6L C8 Front-Wheel Drive | 2019–2021 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | This fitment is specifically recorded for front-wheel-drive vehicles. Quattro versions must be confirmed separately. |
| Audi A6 C8 allroad quattro | 2019+ | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Dedicated C8 quattro allroad application. Confirm the front hub, original brakes, and wheel configuration. |
| Audi A7 / A7L C8 Front-Wheel Drive | 2020+ | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Confirm the drivetrain and complete chassis code. Quattro applications may require a different bracket. |
| Audi A7 / A8 / A8L C7, 4HL, 4H8 | 2012–2018 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Confirm the complete chassis code and factory front brake specification before checkout. |
| Audi A8 4E8 / C6 | 2003–2009 | Front | 380×32mm | 19-inch+ | Confirm the chassis, original rotor dimensions, front hub, and wheel spoke clearance. |
| Audi A8 D5 | 2020+ | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Confirm the exact trim and factory front brake package, particularly on higher-output versions. |
| Audi S8L D5 | 2018+ | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | High-performance application. Verify the original caliper, rotor size, bracket, and actual wheel envelope. |
| Audi Q2L | 2020+ | Front | 380×32mm | 19-inch+ | The supplied data validates a 19-inch 380mm configuration. A 405mm setup requires separate confirmation. |
| Audi Q3 | 2013–2020 | Front | 380×32mm | 19-inch+ | Confirm the exact generation, wheel offset, inner barrel, and spoke-to-caliper clearance. |
| Audi Q5 / Q5L FY | 2017–2021+ | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Confirm Q5 or Q5L chassis, production year, drivetrain, bracket configuration, and wheel specification. |
| Audi Q5 / SQ5 B8 | Q5: 2009–2018; SQ5: 2013–2017 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Multiple source records overlap. Confirm the exact B8 chassis and original front brake package. |
| Audi Q7 4L, Original 18Z Setup | 2002–2016 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Confirm that the vehicle uses the original 18Z front setup, then verify the hub, bracket, and wheel clearance. |
| Audi Q7, Original 19Z Setup | Confirm year | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | The supplied data does not provide a reliable year range. Confirm the VIN and original 19Z setup before ordering. |
| Audi Q7 4MB / 4MG | 2016–2020 | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | Confirm the exact 4M chassis, original front brakes, wheel width, offset, and spoke clearance. |
| Audi Q8 4M / 4MN | 2018+ | Front | 380×32mm / 405×32mm | 19-inch / 20-inch+ | The workbook contains more than one Q8 configuration. Confirm the chassis, trim, and original front brakes. |
| Audi TT / TTS | 2007–2019 | Front | 380×32mm | 19-inch+ | The supplied data directly validates the 380mm configuration. A 405mm setup requires separate confirmation. |
Fitment Confirmation Before Checkout
Matching the Audi model, production year, or wheel diameter does not automatically confirm brake-kit compatibility. Audi vehicles may use different drivetrains, front hubs, steering knuckles, factory brake packages, wheel offsets, and spoke profiles within the same model generation.
- Confirm the exact Audi model and production year.
- Provide the complete chassis code and VIN where possible.
- Confirm front-wheel drive, quattro, allroad, S, or RS configuration.
- Select the 380×32mm or 405×32mm brake disc option.
- Provide the wheel diameter, width, and offset.
- Confirm whether the wheels are OEM or aftermarket.
- Measure the inner wheel barrel and spoke-to-caliper clearance.
- Confirm the original front caliper and rotor specification.
- Disclose wheel spacers, hub changes, suspension modifications, or previous brake upgrades.
- Provide clear photos of the wheel face and original front brake assembly.
The 380×32mm configuration is generally recommended for 19-inch wheels, while the 405×32mm configuration is generally recommended for 20-inch or larger wheels. Wheel diameter alone does not guarantee clearance. The wheel offset, inner-barrel diameter, spoke profile, bracket position, and complete caliper envelope must all be verified.
Confirm Your Audi IC7 Fitment
Send your Audi model, year, chassis code, drivetrain, preferred brake disc size, wheel specifications, and front brake photos before checkout. ICOOH can help verify the appropriate IC7 configuration for your vehicle.
