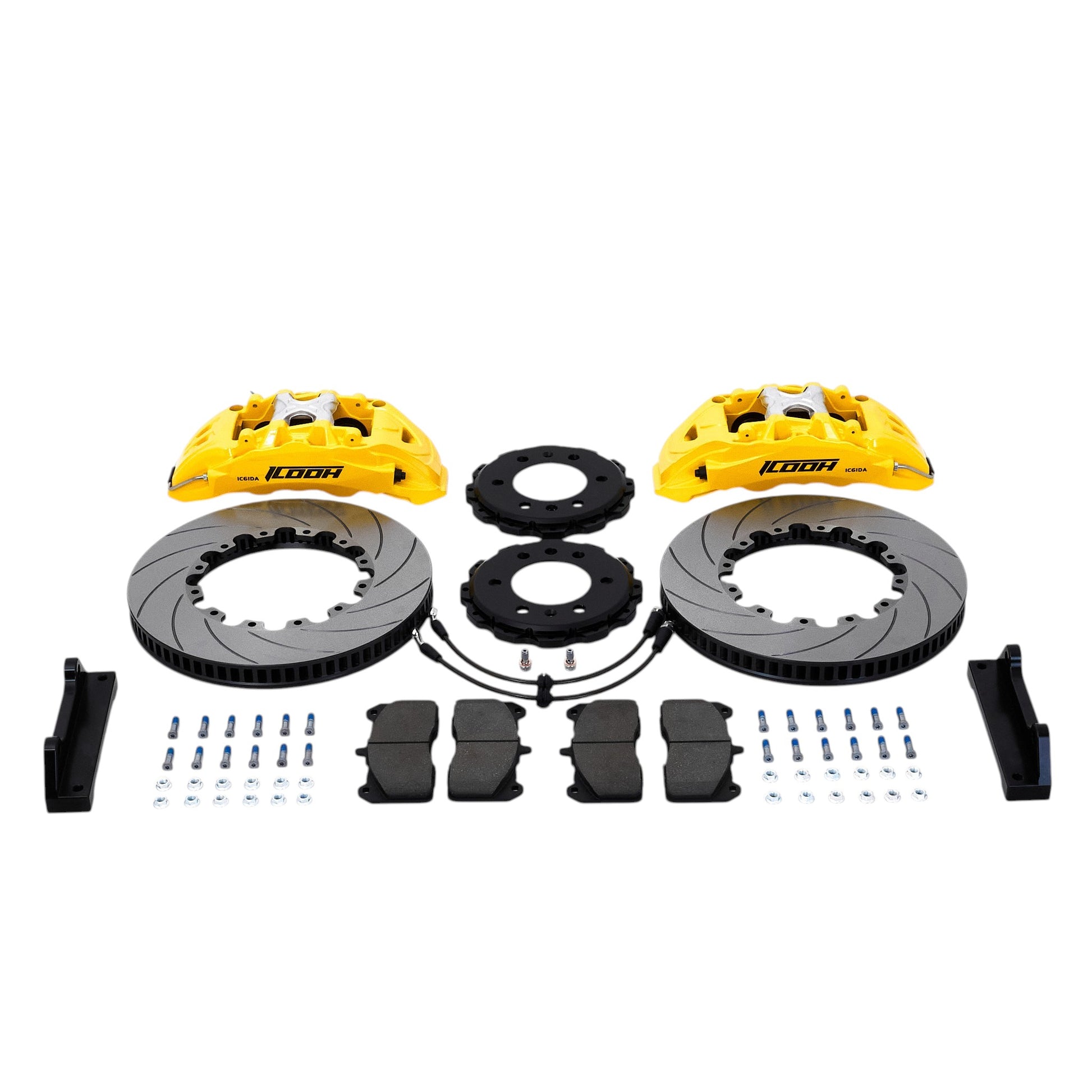

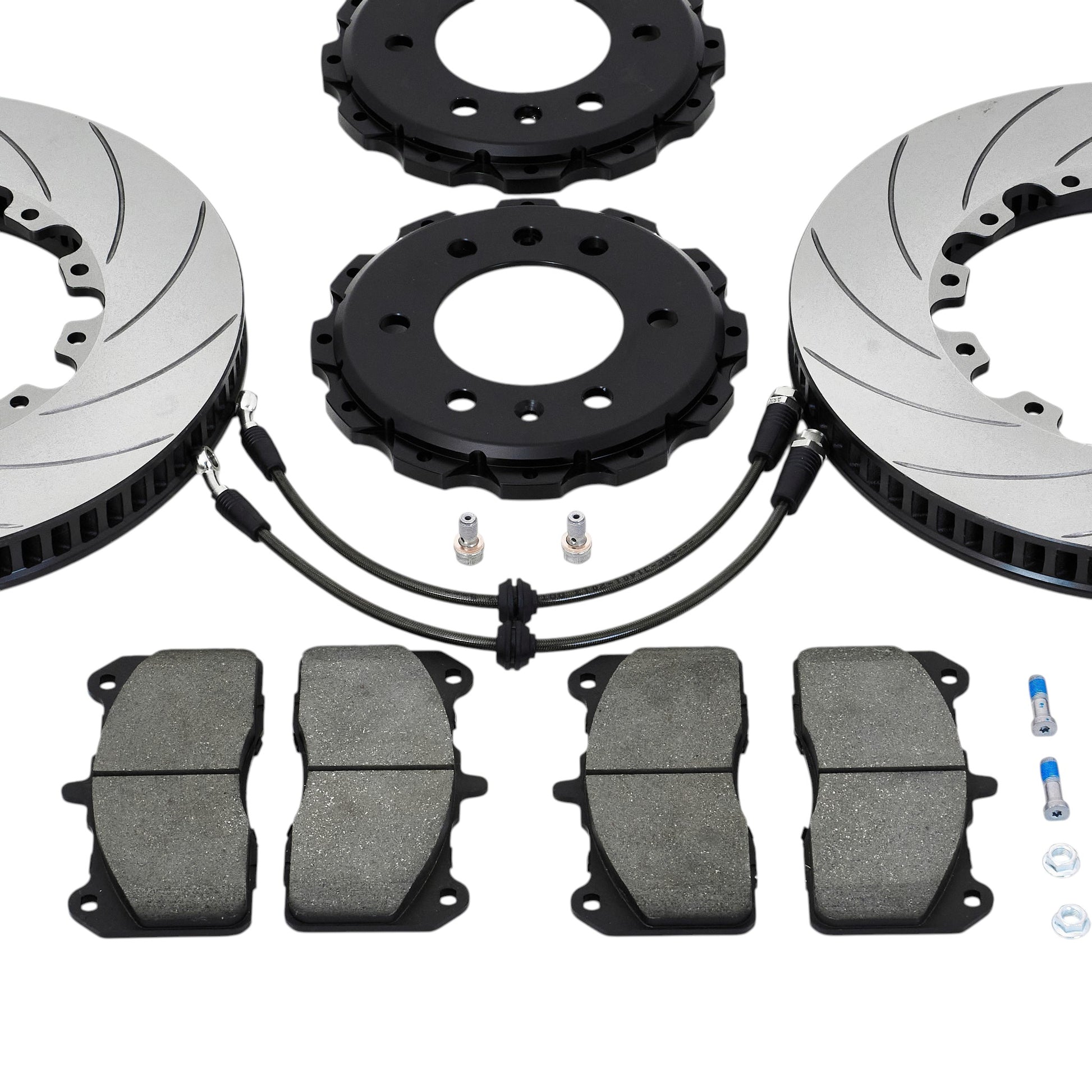

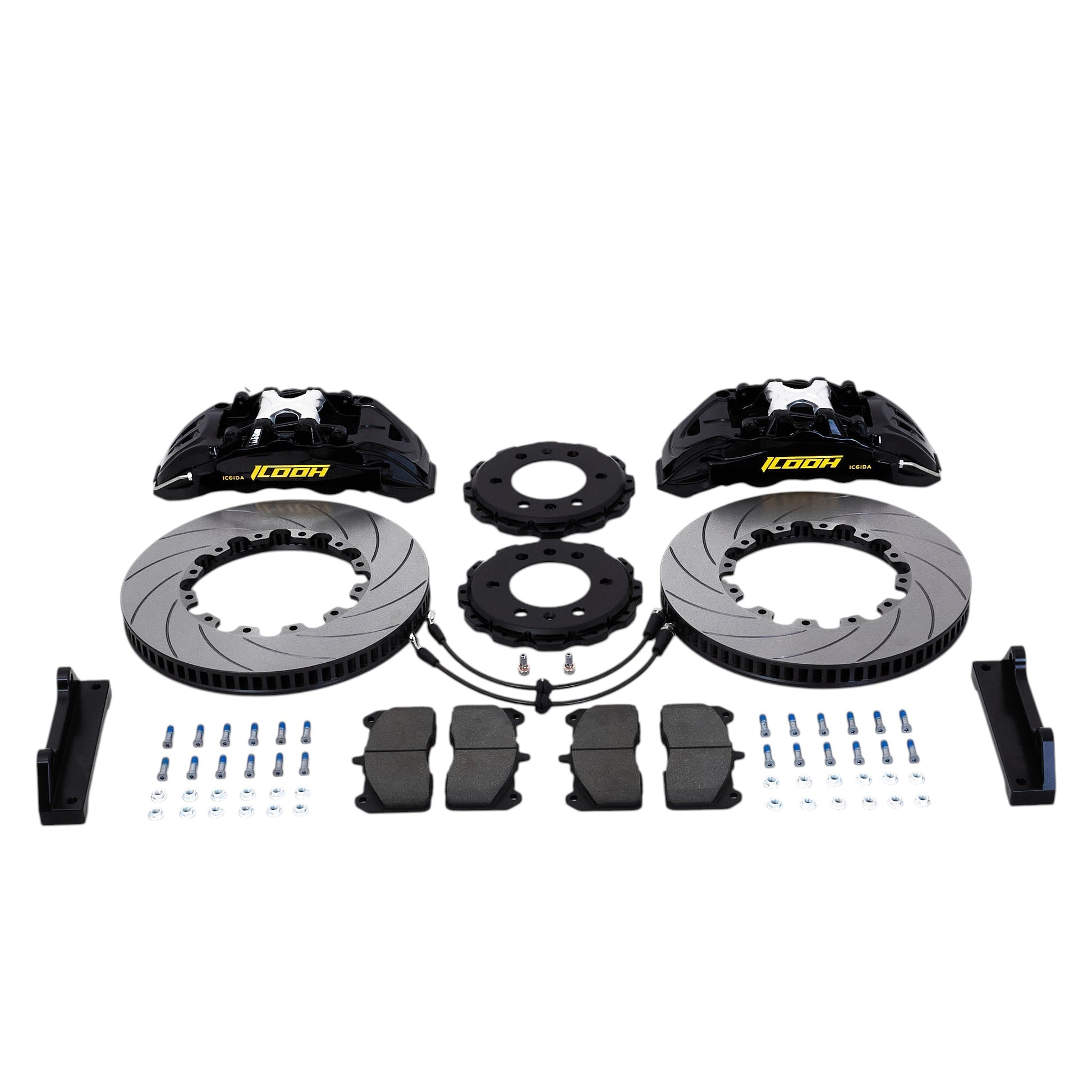

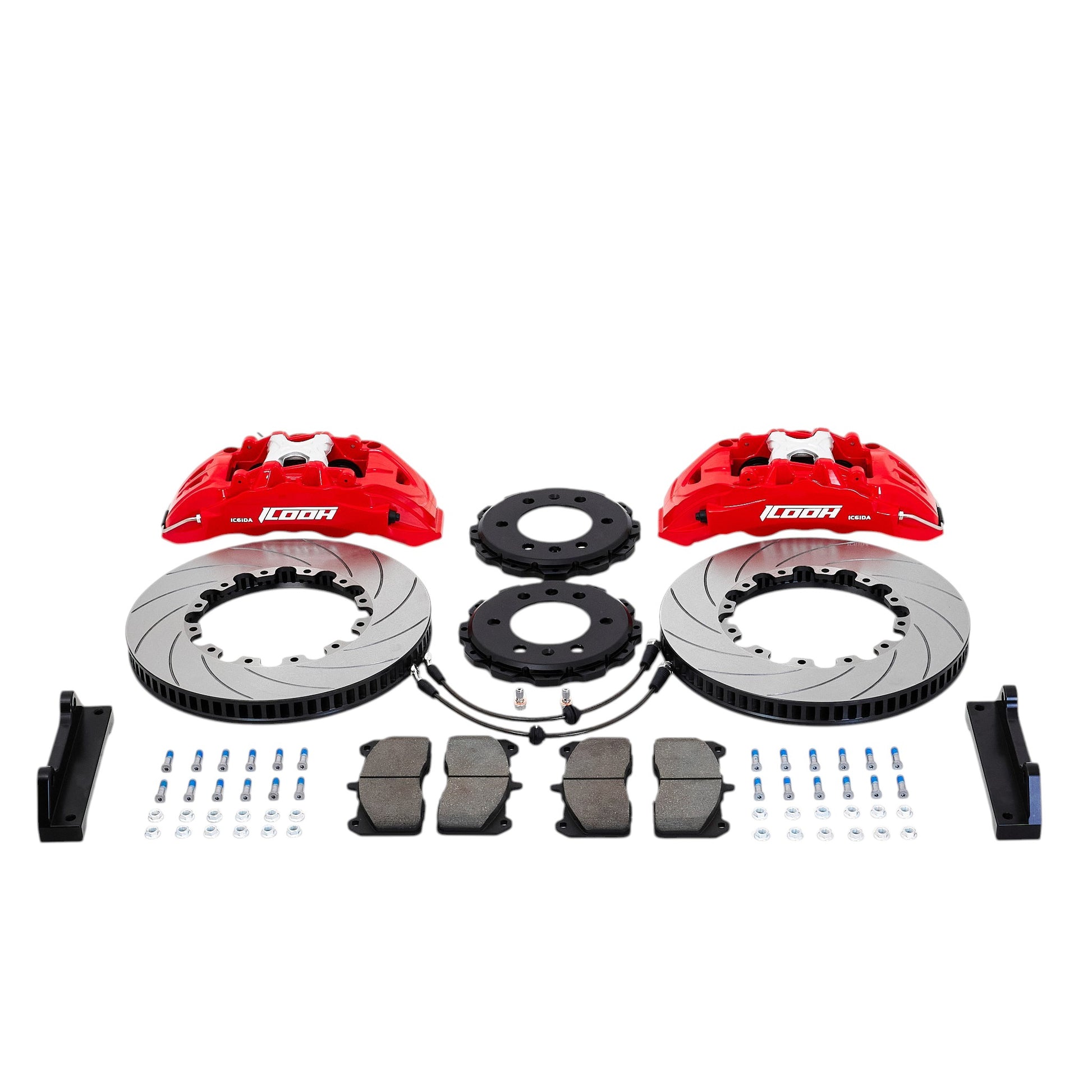

ICOOH IC6 Audi Front Big Brake Kit
The ICOOH IC6 Audi front brake kit is developed for selected Audi chassis requiring stronger braking performance, faster response, firmer pedal control, and increased thermal capacity. It combines an IC6 forged 6-piston front caliper with 380×34mm, 405×35mm, or 410×36mm brake disc options for 19-inch and larger wheel applications.

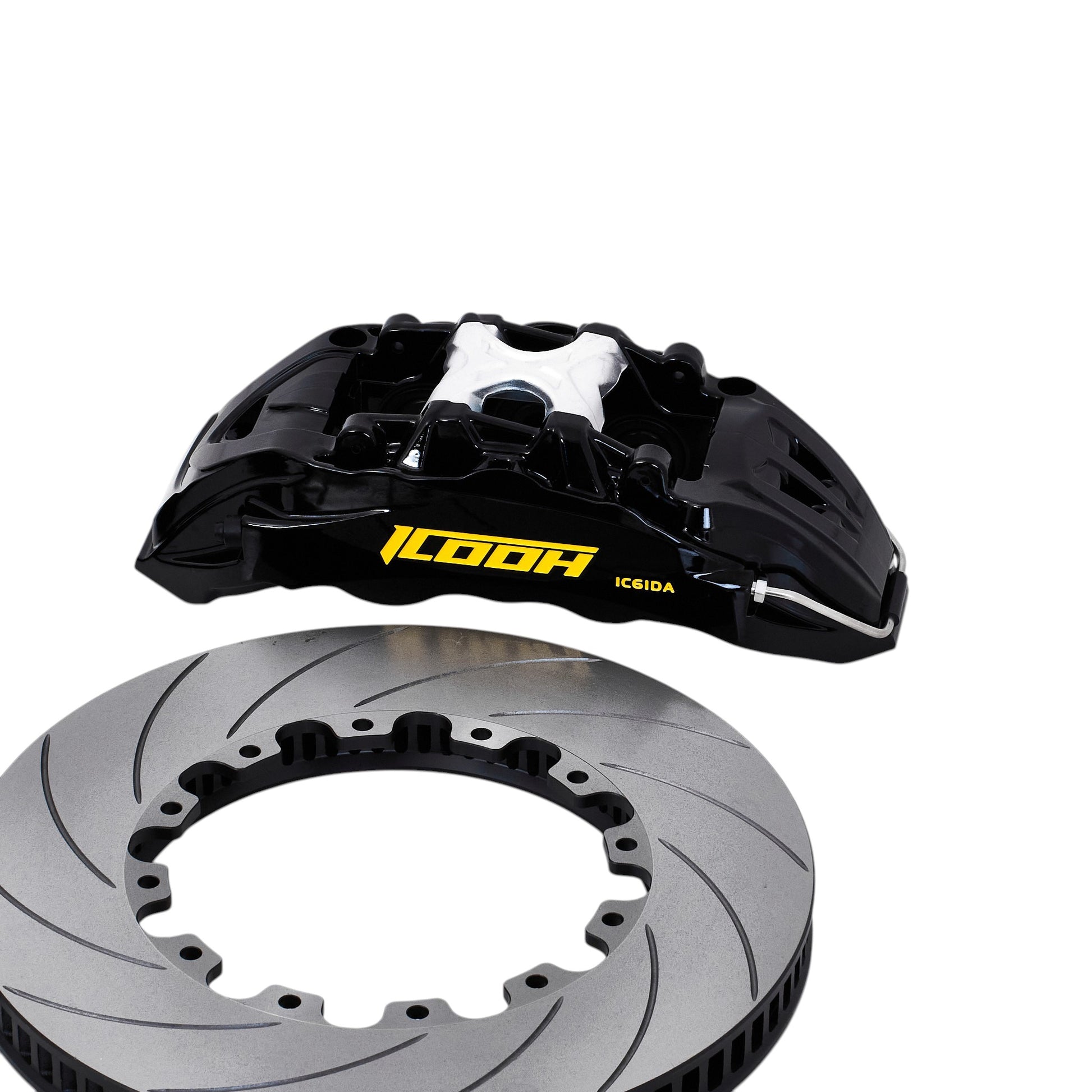

Forged 6-Piston Caliper
The IC6 front caliper uses six pistons to distribute clamping pressure across the brake pad and deliver a controlled, responsive pedal feel.
Three Disc Configurations
Select 380×34mm, 405×35mm, or 410×36mm according to the Audi chassis, original braking system, wheel size, and available clearance.
Audi Chassis Fitment
Applications are organized by model, production year, chassis, drivetrain, front hub structure, wheel specification, and original brake package.
19-Inch and Larger Wheels
IC6 configurations are intended for 19-inch and larger wheels. Wheel diameter alone does not guarantee caliper clearance.
The entry IC6 configuration for selected 19-inch wheel applications. Check the inner barrel, spoke profile, wheel offset, hub location, and caliper template before ordering.
Intended for selected 20-inch wheel applications. This size replaces legacy 390mm references in the supplied fitment data for this Shopify product.
The largest IC6 option in this listing. It is available for selected chassis and is generally easier to package with 21- or 22-inch wheels.
Brake Kit Specification
| Brand | ICOOH |
|---|---|
| Vehicle Brand | Audi |
| Brake Kit Series | IC6 Series |
| Installation Position | Front axle |
| Caliper Type | Forged 6-piston front brake caliper |
| Brake Disc Options | 380×34mm / 405×35mm / 410×36mm |
| Recommended Wheel Guide | 19-inch for 380mm / 20-inch for 405mm / selected 20–22-inch wheels for 410mm |
| Suitable Applications | Selected Audi sedans, coupes, wagons, SUVs, S models, RS models, quattro models, and modified performance vehicles |
| Brake Pad Configuration | Matched IC6 brake pad set; exact pad reference varies by rotor and vehicle configuration |
| Rotor Configuration | Vehicle-specific rotor and center-bell assembly; exact specification depends on chassis and selected disc size |
| Fitment Type | Vehicle-specific front brake upgrade with mandatory chassis, drivetrain, hub, wheel, and caliper-clearance confirmation |
Audi IC6 Front Brake Kit Fitment List
The applications below are consolidated from the supplied Audi IC6 fitment workbook. Legacy 390mm references have been standardized to the confirmed 405×35mm Shopify specification. Where 405mm and 410mm records overlap, the final configuration must be confirmed according to the bracket, rotor assembly, wheel design, and vehicle setup.
| Audi model / chassis | Year | Position | Disc options | Wheel guide | Fitment notes |
|---|---|---|---|---|---|
| Audi A1 8X1 / 8XA | 2010–2018 | Front | 380×34mm / 410×36mm | 19-inch / selected 20–22-inch | Compact-platform application. Wheel width, offset, inner barrel, and spoke clearance must be measured carefully. |
| Audi A3 / S3 | 2014–2020 | Front | 380×34mm | 19-inch+ | The supplied scan record validates the 380mm configuration. Larger disc options require separate confirmation. |
| Audi A4 / A4L / A5 B9 | 2016–2021 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 20–22-inch | Related records include selected S4 B9/8W5, A5 F5, Q5 FY, A6 Avant C8, A7 4KA/4G9, and Q7 4M applications. |
| Audi A4 / A4L / A5 / S4 / S5 B8 | 2009–2016 | Front | 380×34mm; 405×35mm or 410×36mm subject to confirmation | 19-inch; larger wheels confirm | Different B8 records use different larger-rotor assemblies. Confirm the exact chassis and bracket before selection. |
| Audi S4 / RS4 / S5 / RS5 | 2020+ | Front | 380×34mm / 405×35mm | 19 / 20-inch | The source uses an open-ended year range. Confirm the exact production year, trim, and factory brake system. |
| Audi A4 B6 | 2002–2005 | Front | 380×34mm / 410×36mm | 19-inch / selected 20–22-inch | Related data references an A4 B7 application. Confirm the exact chassis, hub, and wheel setup before ordering. |
| Audi A6 / A6L C7 Sedan | 2012–2018 | Front | 380×34mm / 405×35mm | 19 / 20-inch | This scanned configuration excludes the C7 wagon. Use the separate allroad fitment for Avant/allroad applications. |
| Audi A6 C7 allroad quattro 4GH / 4GJ | 2012–2018 | Front | 380×34mm / 410×36mm | 19-inch / selected 20–22-inch | Dedicated C7 allroad/Avant quattro fitment. Confirm the exact wheel and original front brake package. |
| Audi A6 / A6L C8 Front-Wheel Drive | 2019–2021 | Front | 380×34mm / 405×35mm | 19 / 20-inch | This record is specifically marked for front-wheel-drive vehicles. Quattro and allroad versions must be confirmed separately. |
| Audi A6 C8 allroad quattro | 2019+ | Front | 380×34mm / 410×36mm | 19-inch / selected 20–22-inch | Dedicated quattro allroad application. Confirm front hub, factory brake package, and wheel clearance. |
| Audi A7 / A7L C8 Front-Wheel Drive | 2020+ | Front | 380×34mm / 405×35mm | 19 / 20-inch | Confirm drivetrain and production year. Quattro applications may use a different bracket or rotor assembly. |
| Audi A7 / A8 / A8L C7, 4HL, 4H8 | 2012–2018 | Front | 380×34mm / 405×35mm | 19 / 20-inch | Confirm the complete chassis code and factory front brake specification before checkout. |
| Audi A8 4E8 / C6 | 2003–2009 | Front | 380×34mm / 405×35mm | 19 / 20-inch | Confirm chassis code, original rotor dimensions, and wheel spoke clearance. |
| Audi A8 D5 | 2020+ | Front | 380×34mm / 405×35mm | 19 / 20-inch | Confirm the exact trim and factory front brake package, particularly on higher-output versions. |
| Audi S8L D5 | 2018+ | Front | 380×34mm / 410×36mm | 19-inch / selected 20–22-inch | High-performance application. Verify the original caliper, rotor size, and actual wheel envelope. |
| Audi Q2L | 2020+ | Front | 380×34mm | 19-inch+ | The source validates a 19-inch 380mm configuration. Larger options require a separate fitment check. |
| Audi Q3 | 2013–2020 | Front | 380×34mm | 19-inch+ | Confirm exact generation, wheel offset, and spoke-to-caliper clearance. |
| Audi Q5 / Q5L FY | 2017–2021+ | Front | 380×34mm / 405×35mm; 410×36mm selected fitment | 19 / 20-inch; 410mm confirm | The workbook contains both standard scanned and shared-platform records. Confirm Q5 or Q5L chassis and bracket configuration. |
| Audi Q5 / SQ5 B8 | Q5: 2009–2018; SQ5: 2013–2017 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 20–22-inch | Multiple source records overlap. Confirm the exact B8 chassis, original front brake package, and selected rotor family. |
| Audi Q7 4L, Original 18Z Setup | 2002–2016 | Front | 380×34mm / 410×36mm | 19-inch / selected 20–22-inch | Confirm that the vehicle has the original 18Z front setup and verify the front hub and wheel clearance. |
| Audi Q7, Original 19Z Setup | Confirm year | Front | 380×34mm / 410×36mm | 19-inch / selected 20–22-inch | The source does not provide a reliable year range. Confirm VIN, chassis, and original 19Z brake setup before ordering. |
| Audi Q7 4MB / 4MG | 2016–2020 | Front | 380×34mm / 405×35mm; 410×36mm selected fitment | 19 / 20-inch; 410mm confirm | Related shared-platform data lists Q7 4M from 2015. Confirm chassis and wheel clearance. |
| Audi Q8 4M / 4MN | 2018+ | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 20–22-inch | The workbook contains more than one Q8 configuration. Confirm the exact chassis, trim, and original front brakes. |
| Audi TT / TTS | 2007–2019 | Front | 380×34mm | 19-inch+ | Larger disc configurations are not directly validated in the supplied scan data and require separate confirmation. |
Fitment Confirmation Before Checkout
Matching the Audi model, production year, or wheel diameter does not automatically confirm brake-kit compatibility. Audi vehicles may use different drivetrains, front hubs, steering knuckles, factory brake packages, wheel offsets, and spoke profiles within the same model generation.
- Confirm the exact Audi model and production year.
- Provide the complete chassis code and VIN where possible.
- Confirm front-wheel drive, quattro, allroad, S, or RS configuration.
- Select the 380×34mm, 405×35mm, or 410×36mm disc option.
- Provide the wheel diameter, width, and offset.
- Confirm whether the wheels are OEM or aftermarket.
- Measure the inner barrel and spoke-to-caliper clearance.
- Confirm the original front caliper and rotor specification.
- Disclose wheel spacers, hub changes, suspension modifications, or previous brake upgrades.
- Provide clear photos of the wheel face and original front brake assembly.
The 380×34mm configuration is generally recommended for 19-inch wheels, the 405×35mm configuration for 20-inch wheels, and the 410×36mm configuration for selected 20- to 22-inch wheels. Wheel diameter alone does not guarantee clearance. The wheel offset, inner-barrel diameter, spoke profile, bracket position, and complete caliper envelope must all be verified.
Confirm Your Audi IC6 Fitment
Send your Audi model, year, chassis code, drivetrain, preferred brake disc size, wheel specifications, and front brake photos before checkout. ICOOH can help verify the appropriate IC6 configuration for your vehicle.
