ICOOH IC6 BMW Front Big Brake Kit
The ICOOH IC6 BMW front brake kit is developed for selected BMW chassis requiring stronger front braking performance, responsive pedal control, and improved braking consistency during repeated high-load use. It combines a forged IC6 6-piston front caliper with 380×34mm, 405×35mm, or 410×36mm brake disc options for 19-inch and larger wheel applications.
Forged 6-Piston Caliper
The IC6 caliper uses a forged aluminum construction and six pistons to distribute pressure across the brake pad for controlled, responsive braking input.
Three Disc Configurations
Select 380×34mm, 405×35mm, or 410×36mm according to the BMW chassis, factory brake package, wheel size, and available internal clearance.
BMW Chassis Fitment
Applications are organized by BMW model, production year, chassis family, front hub structure, original brake package, and wheel specification.
19-Inch and Larger Wheels
IC6 configurations are intended for 19-inch and larger wheels. Wheel diameter alone does not guarantee spoke-to-caliper clearance.
The primary IC6 configuration for selected 19-inch wheel applications. Check wheel offset, inner barrel, spoke profile, front hub, bracket, and caliper template before ordering.
The intermediate configuration for selected 20-inch wheel applications. Legacy 390mm fitment records are grouped under this confirmed Shopify specification.
The largest IC6 option in this listing. It is intended for selected BMW performance cars, large luxury models, SUVs, and builds with sufficient wheel clearance.
Brake Kit Specification
| Brand | ICOOH |
|---|---|
| Vehicle Brand | BMW / selected MINI shared-platform applications |
| Brake Kit Series | IC6 Series |
| Installation Position | Front axle |
| Caliper Type | Forged aluminum 6-piston front brake caliper |
| Caliper Weight | Approximately 5.2kg |
| Brake Disc Options | 380×34mm / 405×35mm / 410×36mm |
| Recommended Wheel Guide | 19-inch for 380mm / 20-inch for 405mm / selected 20–22-inch wheels for 410mm |

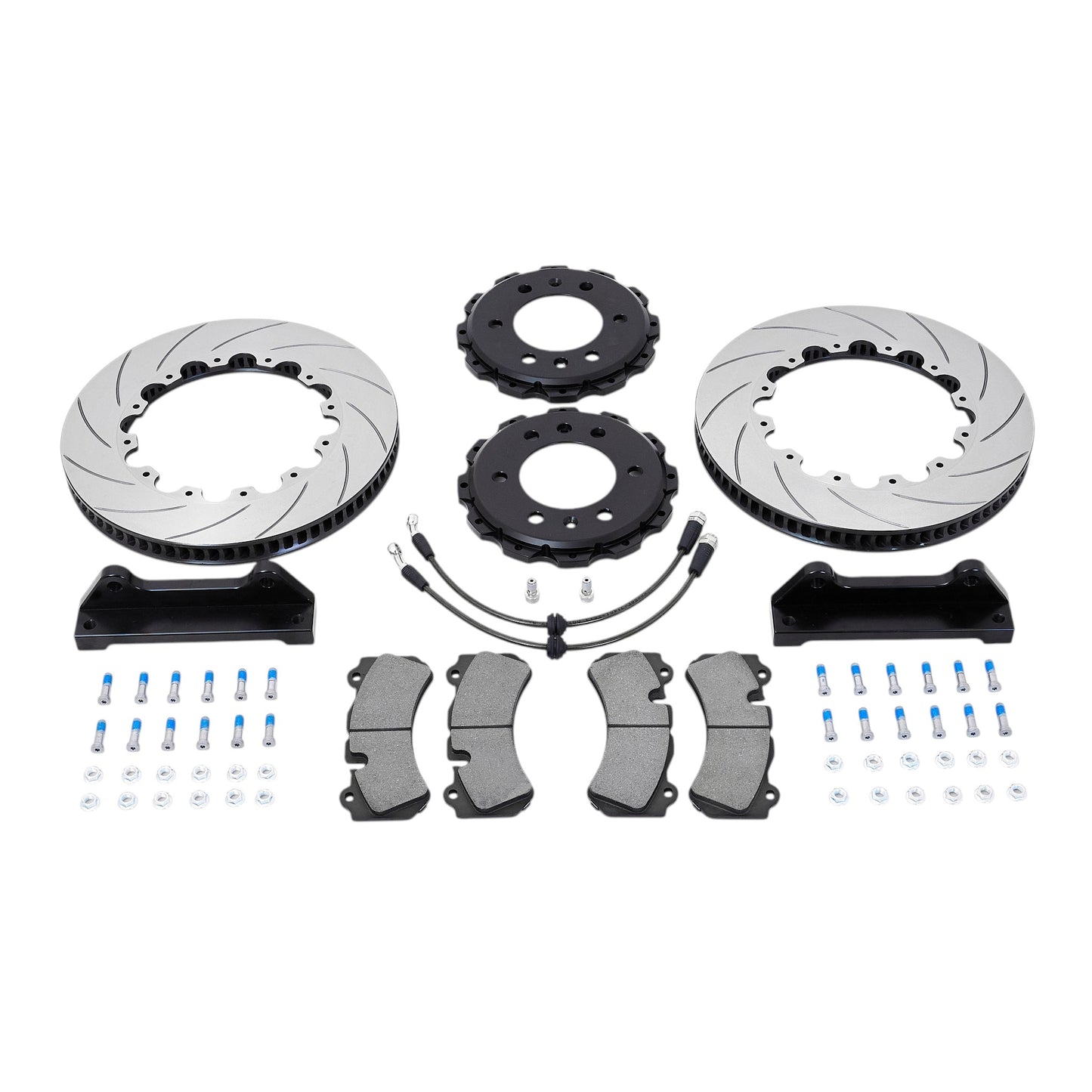

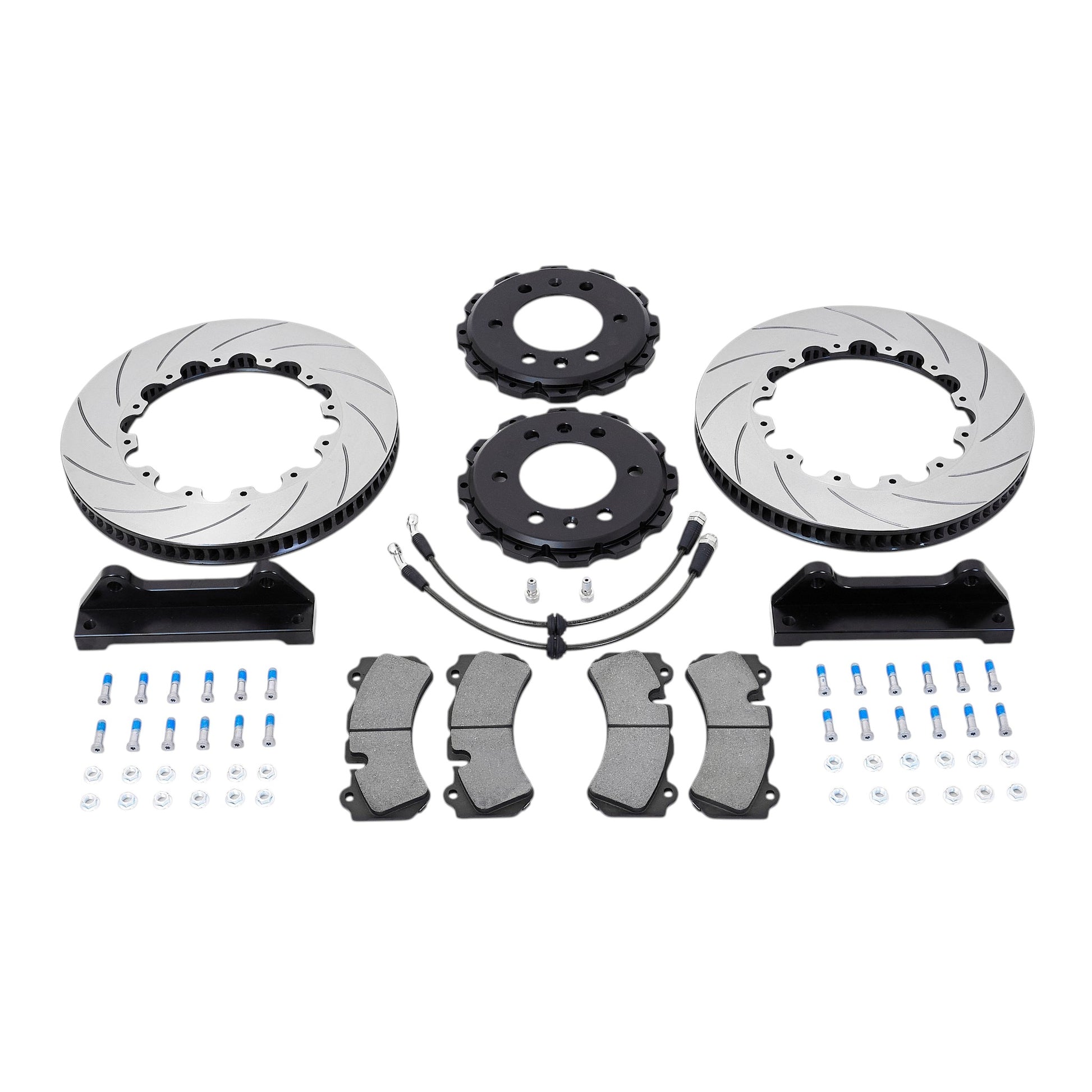

| Standard Kit Components | 2 brake calipers, 2 brake discs, 2 brake lines, 4 brake pads, and 2 center bells |
| Brake Pad | Default C100 street-version pads; upgrade options may be available |
| Brake Line | Composite steel-wire high-pressure brake line |
| Rotor Options | High-temperature carbon alloy or carbon-ceramic rotor, depending on the selected configuration |

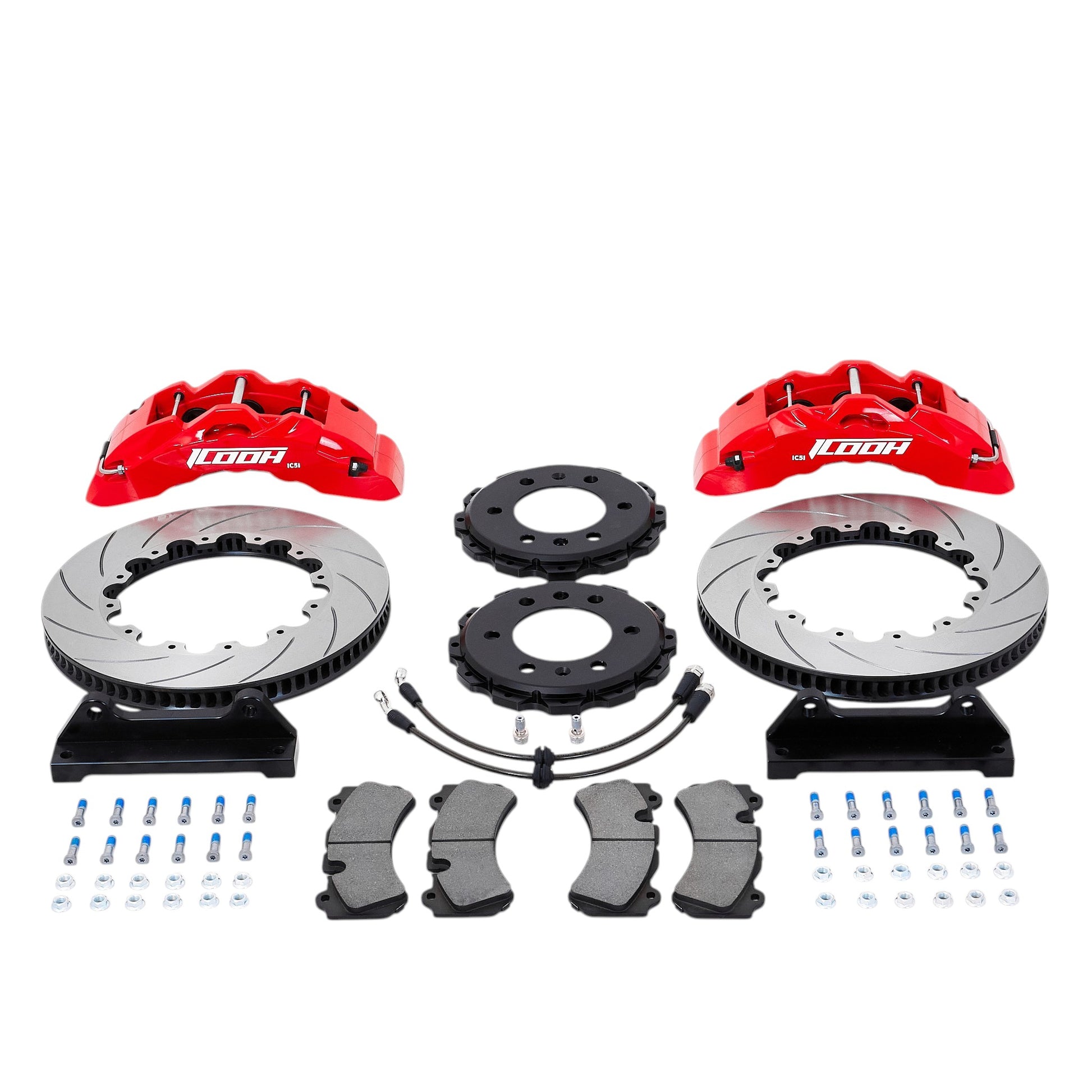

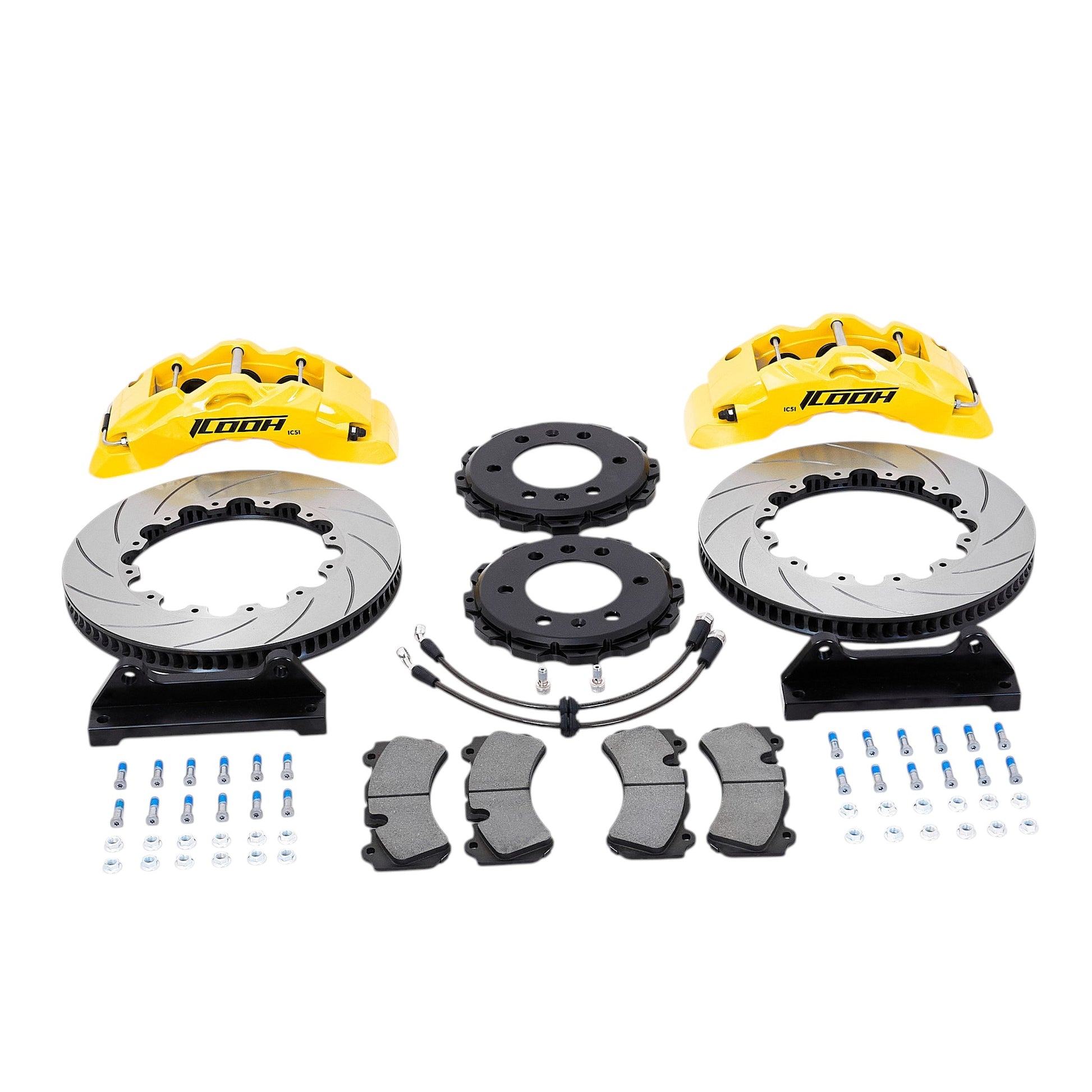

| Available Caliper Colors | Ruby Red, Yellow, Tiffany Blue, Rock Gray, and Night Black, subject to availability |
| Fitment Type | Vehicle-specific front brake upgrade with mandatory chassis, wheel, hub, bracket, and caliper-clearance confirmation |
BMW IC6 Front Brake Kit Fitment List
The applications below are consolidated from the supplied BMW IC6 fitment workbook. Legacy 390mm references are presented as the confirmed 405×35mm Shopify option. Applications with explicit 410mm records retain the 410×36mm option. Final disc selection must be confirmed according to the exact chassis, bracket, original brake package, wheel diameter, offset, inner barrel, and spoke clearance.
| BMW model / chassis | Year | Position | Available disc configurations | Wheel guide | Fitment notes |
|---|---|---|---|---|---|
| BMW 1 Series E81 / E82 / E87 / E88 | 2003–2013 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Shared source fitment also references selected E89 and E9x platforms. Confirm the exact chassis and front hub. |
| BMW 1 / 2 Series F20 / F21 / F22 / F23 | 2010–2019 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Includes selected F20 2015–2019 applications. Confirm the original brake package and wheel clearance. |
| BMW 1 Series F40 / F52 and 2 Series F44 / F45 / F46 | 2016–2021 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Front-wheel-drive-platform applications require confirmation of the exact knuckle, hub, and bracket arrangement. |
| BMW 3 Series E90 / E91 / E92 / E93 | 2004–2013 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm sedan, wagon, coupe, or convertible chassis and original front brake specification. |
| BMW 3 / 4 Series F30 / F31 / F32 / F33 / F34 / F35 / F36 | 2011–2019 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Related source applications include selected F80 M3 and F-Series chassis. Confirm standard or M Sport brake package. |
| BMW 3 / 4 Series G20 / G21 / G28 / G22 / G23 | 2018+ | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Shared fitment data also references selected G42 2 Series and G29 Z4 applications. Confirm the exact chassis. |
| BMW E36 M3 | 1990–1999 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Older performance chassis. Confirm the actual hub, suspension, wheel, and previous modification history. |
| BMW E46 / selected E36, E85 and E86 platforms | 2000–2005; confirm shared chassis | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Shared-platform note in the supplied workbook. Verify the exact vehicle before selecting the mounting bracket. |
| BMW E46 M3 | 1996–2006 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm original front hub, suspension setup, and wheel clearance before checkout. |
| BMW E39 | 1996–2003 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm exact model, hub structure, wheel offset, and spoke-to-caliper clearance. |
| BMW E60 / E60 M5 | E60: 2003–2007; M5: 2004–2012 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm standard or M5 front brake package and the exact production year. |
| BMW 7 Series E66 | 2003–2008 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Large-body application. Confirm original rotor size, front hub, and wheel clearance. |
| BMW 5 Series / 5 GT F07 / F10 / F11 / F18 | 2008–2017 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Shared workbook data also references selected F02, F06, F12, and F13 front platforms. |
| BMW 6 / 7 Series F06 / F12 / F13 / F01 / F02 / F03 / F04 | 2008–2016 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm exact body style, wheel specification, and factory brake package. |
| BMW 5 / 6 / 7 Series G30 / G31 / G32 / G38 / G11 / G12 | 2015–2017+ | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | The supplied records use different starting years. Confirm VIN, production date, and original brake package. |
| BMW New 5 Series G68 | 2023+ | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | New-generation application. Final vehicle scan and bracket confirmation may be required. |
| BMW E34 M5 | 1992–1995 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm wheel clearance and any existing suspension, hub, or brake conversion. |
| BMW M2 F87 / M3 F80 / M4 F82 | 2012–2019; confirm exact model | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Performance application. Confirm factory iron or carbon-ceramic brake package before selection. |
| BMW M3 G80 | 2021+ | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm standard or upgraded factory braking system and wheel clearance. |
| BMW X1 E84 | 2009–2015 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm exact production year and original front hub. |
| BMW X1 F48 / F49 and X2 F39 | 2016–2021 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm chassis and wheel clearance. The source contains mixed 405mm and 410mm larger-disc records. |
| BMW X3 F25 / X4 F26 | 2010–2017 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm the front hub, original brake package, and wheel spoke clearance. |
| BMW X3 / X4 G01 / G02 / G08 | 2017+ | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Shared workbook data also references selected 8 Series G15, G16, and F93 front applications. |
| BMW X5 E53 | 2000–2006 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm original front brake specification and actual wheel clearance. |
| BMW X5 / X6 E70 / E71 / E72 / F15 / F16 | 2008–2018 | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | The source identifies high- and low-bracket variants. Confirm the knuckle and bracket height before ordering. |
| BMW X5 / X6 / X7 G05 / G06 / G07 | 2017–2019+ | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Large SUV application. Confirm factory M Sport or performance brake package and wheel clearance. |
| BMW i3 I01 | 2017+ | Front | 380×34mm / 405×35mm / 410×36mm | 19 / 20 / selected 21–22 inch | Confirm the imported-electric-vehicle chassis, original front brake, and wheel specification. |
| BMW i8 | 2014–2020 | Front | 405×35mm / 410×36mm | 20–22 inch | The supplied records begin from a 20-inch application. Confirm wheel and front suspension clearance. |
| Selected MINI F54 / F55 / F56 / F57 / F60 platforms | 2015–2020 | Front | 380×34mm; larger options subject to confirmation | 19-inch; larger wheels confirm | Shared-platform application contained in the BMW workbook. Confirm the exact MINI chassis before ordering. |
Fitment Confirmation Before Checkout
Matching the BMW model, production year, or wheel diameter does not automatically confirm brake-kit compatibility. BMW vehicles may use different hubs, steering knuckles, factory brake packages, wheel offsets, and spoke profiles within the same chassis family.
- Confirm the exact BMW model and production year.
- Provide the complete chassis code and VIN where possible.
- Confirm the engine, drivetrain, M Sport, M, or standard brake configuration.
- Select the 380×34mm, 405×35mm, or 410×36mm brake disc option.
- Provide the wheel diameter, width, and offset.
- Confirm whether the wheels are OEM or aftermarket.
- Measure the inner wheel barrel and spoke-to-caliper clearance.
- Confirm the original front caliper and rotor specification.
- Disclose spacers, hub changes, suspension modifications, or previous brake upgrades.
- Provide clear photos of the wheel face and original front brake assembly.
The 380×34mm configuration is generally recommended for 19-inch wheels, the 405×35mm configuration for 20-inch wheels, and the 410×36mm configuration for selected 20- to 22-inch wheels. Wheel diameter alone does not guarantee clearance. Wheel offset, inner-barrel diameter, spoke profile, bracket position, and the complete caliper envelope must all be verified.
Confirm Your BMW IC6 Fitment
Send your BMW model, year, chassis code, factory brake package, preferred brake disc size, wheel specifications, and front brake photos before checkout. ICOOH can help verify the appropriate IC6 configuration for your vehicle.
