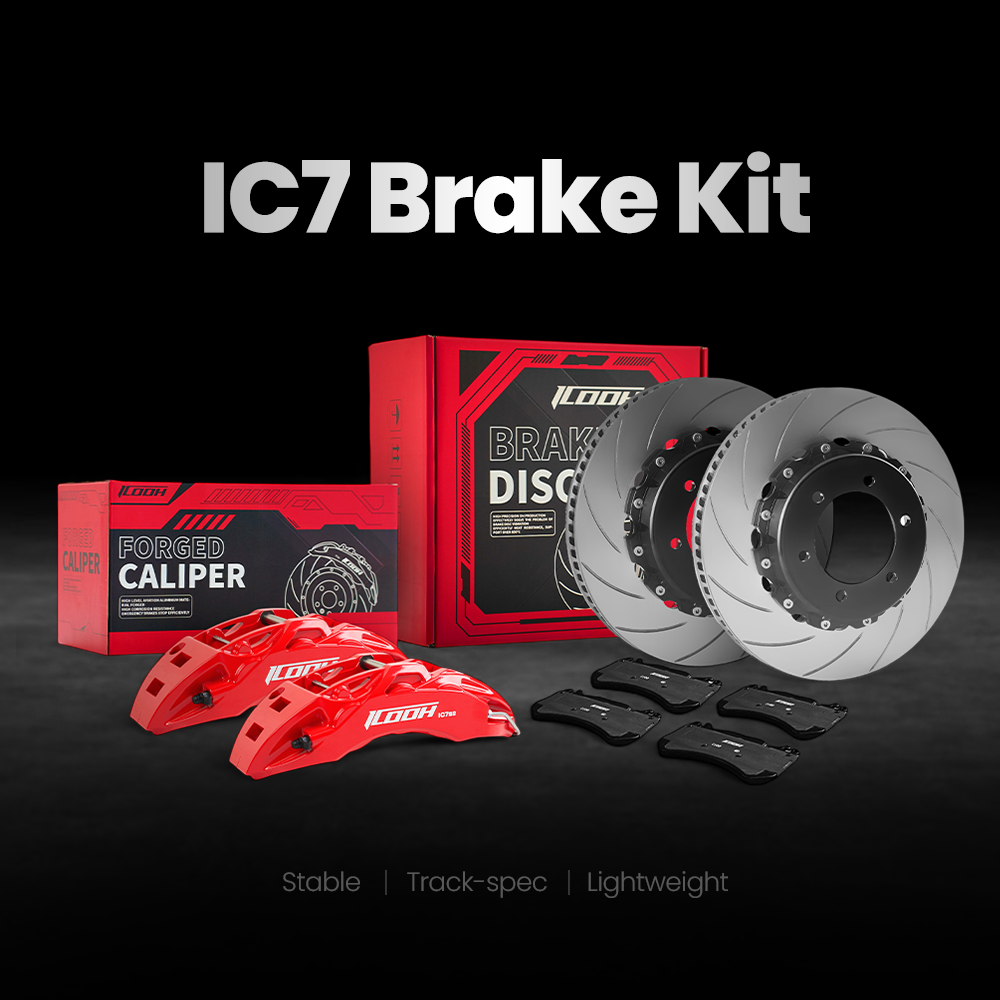

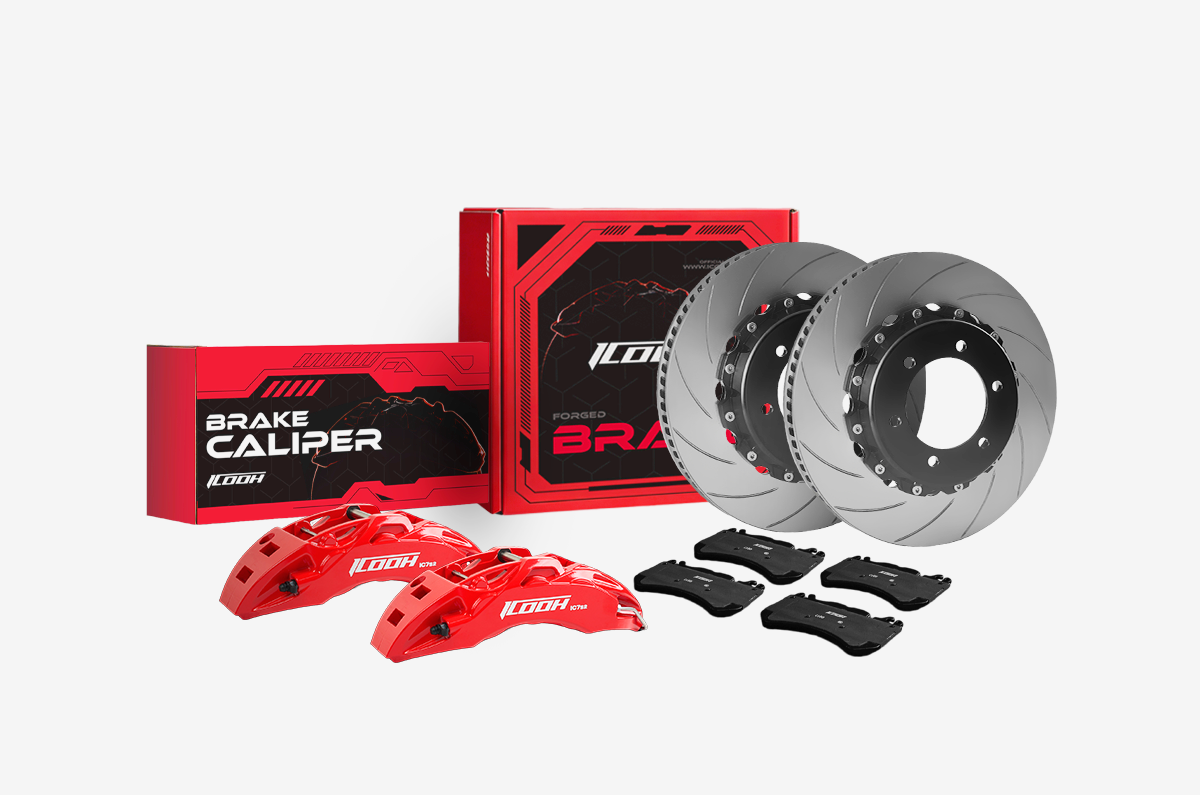

ICOOH IC7 Six Piston Front Big Brake Kit
High Performance Brake Upgrade For 19 Inch+ Wheels
Upgrade your vehicle braking performance with the ICOOH IC7 Front Big Brake Kit. Designed for high-performance vehicles equipped with 19-inch wheels and above, the IC7 features a six-piston fixed caliper design with optional performance brake pads and Carbon Ceramic Brake Disc upgrades.
The IC7 delivers improved braking response, enhanced pedal feedback and consistent performance for street performance vehicles, modified builds and track-focused applications.
Six-Piston Fixed Caliper Performance Design
The ICOOH IC7 uses a six-piston fixed brake caliper structure to optimize brake force distribution and provide more consistent braking performance.
Balanced Braking Force
Six-piston configuration improves brake pad pressure distribution and provides stable braking control.
Improved Pedal Response
Fixed caliper construction delivers a more direct braking feel compared with conventional floating calipers.
Performance Appearance
Large performance caliper design creates an aggressive upgrade appearance behind alloy wheels.
High Performance Application
Suitable for street performance builds and demanding driving conditions.
Designed For 19 Inch And Above Wheels
The ICOOH IC7 brake kit is designed for vehicles equipped with 19-inch, 20-inch and larger performance wheels.
Before ordering, wheel clearance must be confirmed according to:
- Wheel spoke design
- Wheel offset
- Inner barrel clearance
- Brake disc size
- Caliper clearance
Brake Pad Options
Choose different brake pad compounds according to your driving requirements.
CS100 Street Brake Pad
- Average COF: μ 0.30
- Operating Temperature: 0–450°C
- Application: Street Driving
- Low Dust / Low Noise
CS200 Performance Street Brake Pad
- Average COF: μ 0.40
- Operating Temperature: 0–550°C
- Application: Highway / Mountain Roads
- Balanced Performance
CS400 Track Brake Pad
- Average COF: μ 0.56
- Operating Temperature: 100–900°C
- Application: Track Days
- High Temperature Performance
CS450 Endurance Track Brake Pad
- Average COF: μ 0.57
- Operating Temperature: 100–1100°C
- Application: Endurance Racing
- Extreme Temperature Performance
Carbon Ceramic Brake Disc Upgrade Option
The IC7 supports optional Carbon Ceramic Brake Disc upgrades for customers seeking maximum braking performance.
- Reduced rotating mass
- Excellent thermal stability
- Stable friction performance under high temperatures
- Suitable for track and high-performance applications
IC7 Brake Kit Configuration
| Configuration | Includes |
|---|---|
| Standard Performance Package | IC7 Six Piston Brake Calipers, Brake Discs, Brake Pads, Mounting Hardware |
| Performance Brake Pad Upgrade | CS100 / CS200 / CS400 / CS450 Brake Pad Options |
| Carbon Ceramic Brake Disc Package | IC7 Calipers, Carbon Ceramic Brake Discs, Performance Brake Pads |
Product Specifications
| Specification | Details |
|---|---|
| Brand | ICOOH |
| Series | IC7 |
| Product Type | Front Big Brake Kit |
| Caliper Type | Fixed Multi-Piston Caliper |
| Piston Number | 6 Pistons |
| Wheel Size | 19 Inch And Above |
| Brake Disc Options | Standard Disc / Carbon Ceramic Brake Disc |
| Brake Pad Options | CS100 / CS200 / CS400 / CS450 |
Brake Disc Size Options
| Size | Application |
|---|---|
| 380×34mm | Performance Upgrade |
| 405×35mm | High Performance Upgrade |
Vehicle Compatibility
The ICOOH IC7 Front Big Brake Kit is available for selected vehicle applications. Please confirm vehicle information before ordering.
- Vehicle Brand
- Vehicle Model
- Production Year
- Wheel Size
- Wheel Offset
- Current Brake System
Installation Notes
- Professional installation is recommended.
- Confirm wheel clearance before installation.
- Verify brake disc and bracket specifications.
- Bleed brake system after installation.
- Complete brake pad bedding procedure.
Frequently Asked Questions
What wheel size does IC7 require?
IC7 is designed for 19-inch wheels and above. Actual fitment depends on wheel design, offset and clearance.
Can I choose different brake pads?
Yes. IC7 supports CS100, CS200, CS400 and CS450 brake pad options.
Is Carbon Ceramic Brake Disc included?
Carbon Ceramic Brake Disc is an optional upgrade configuration.
Which brake pad is suitable for daily driving?
CS100 is recommended for daily street driving. CS200 is suitable for performance street use.
Which brake pad is suitable for track use?
CS400 and CS450 are designed for track applications.
