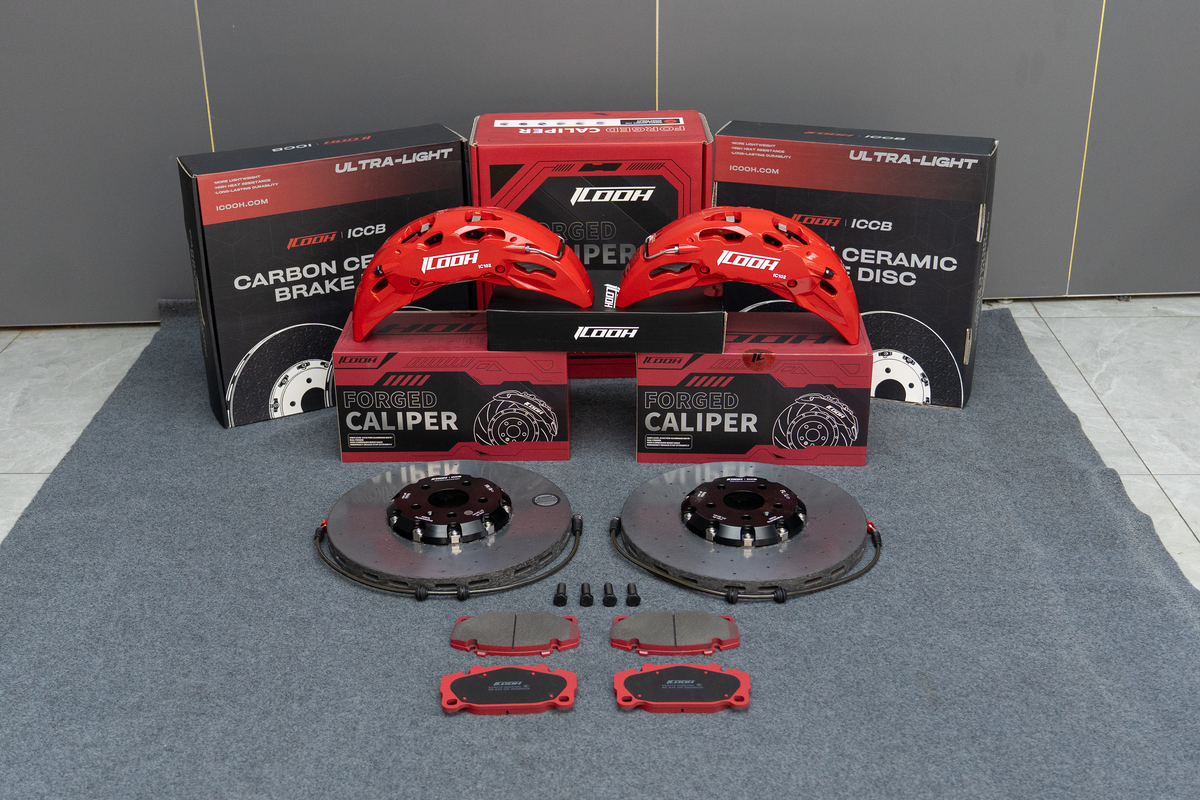

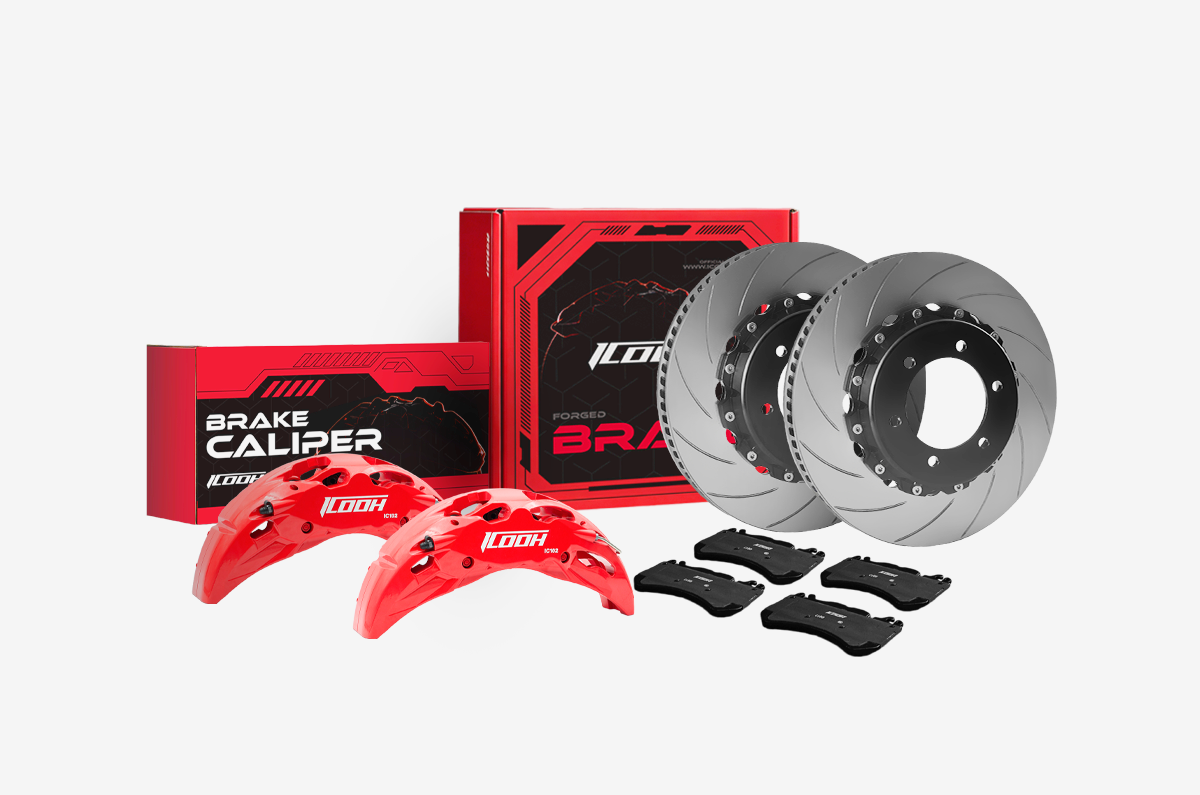

ICOOH IC10 Ten Piston Front Big Brake Kit
Ultimate front brake upgrade designed for high-performance vehicles, EVs, SUVs and powerful vehicles equipped with 20-22 inch wheels.
Premium Ten Piston Brake Upgrade
The ICOOH IC10 Front Big Brake Kit is engineered for drivers demanding maximum braking performance, stability and premium appearance. Featuring a large ten-piston fixed caliper design, the IC10 provides optimized brake pressure distribution, improved braking response and enhanced thermal performance for high-power vehicles.
Performance Features
10 Piston Fixed Caliper
Ten piston structure provides optimized clamping force distribution and improved braking control.
Forged Aluminum Construction
High-strength forged aluminum body delivers lightweight performance and excellent rigidity.
Large Vehicle Application
Designed for EVs, SUVs and high-performance vehicles requiring increased braking capability.
20-22 Inch Wheel Fitment
Designed for large diameter performance wheels with 400-440mm brake disc applications.

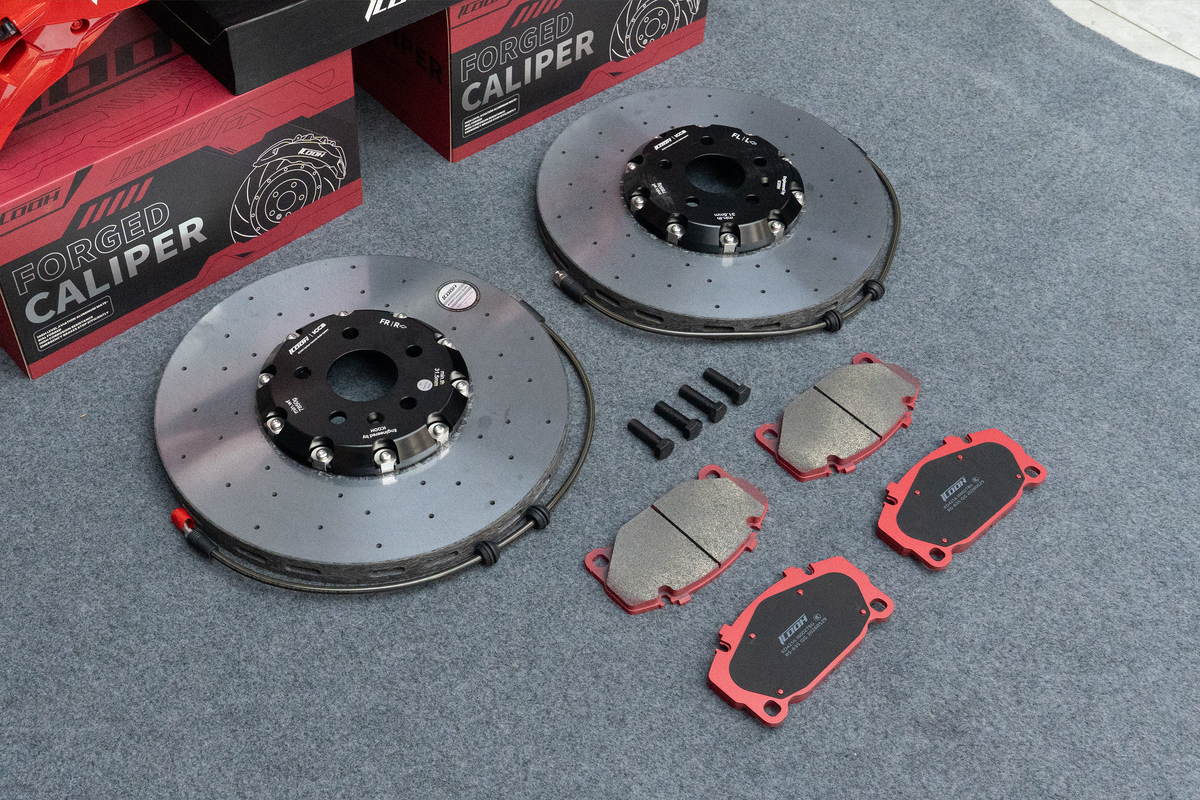

Carbon Ceramic Brake Disc Option
The IC10 supports optional Carbon Ceramic Brake Disc upgrades for customers seeking reduced weight, superior thermal performance and stable braking under extreme conditions.
Reduced Rotating Mass
Carbon ceramic discs reduce weight and improve performance characteristics.
High Temperature Stability
Maintains consistent braking performance during repeated high-temperature braking.
Performance Application
Recommended for track-focused builds and high-performance vehicles.

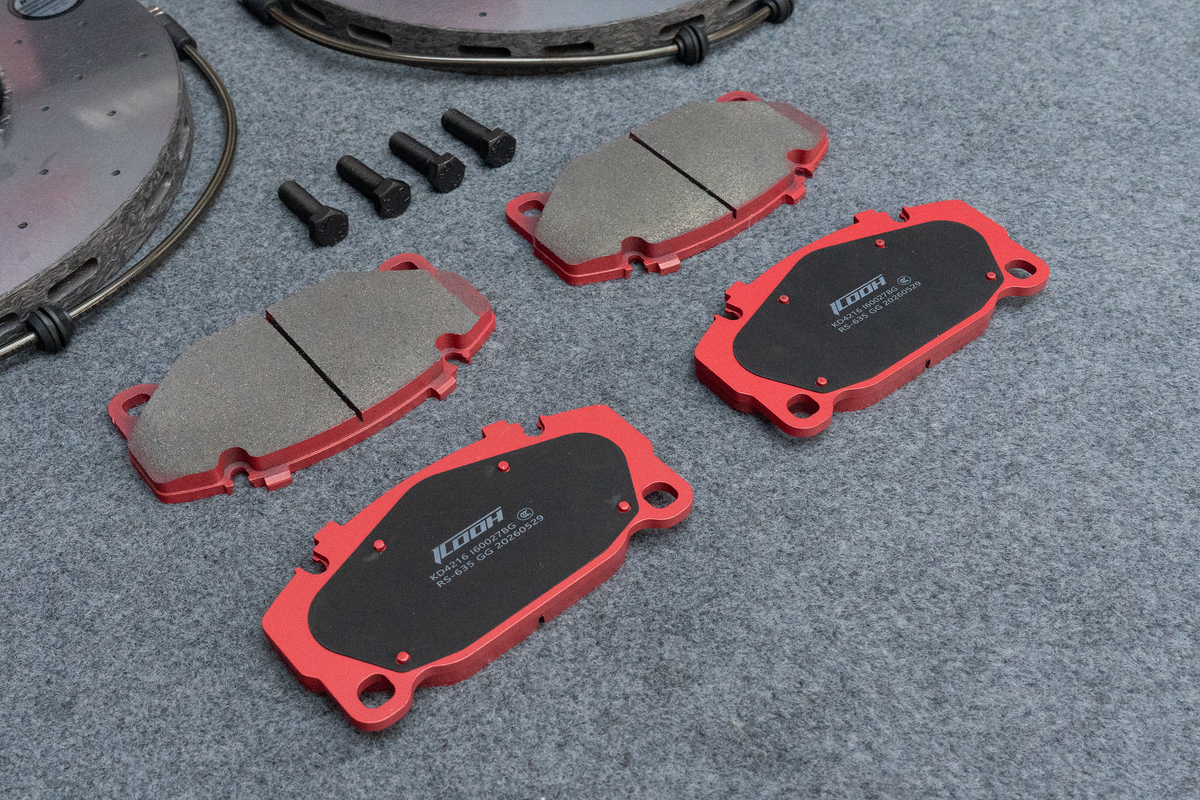

Brake Pad Options
CS100 Street
COF: μ0.30
Temperature: 0-450°C
Application: Street
CS200 Performance Street
COF: μ0.40
Temperature: 0-550°C
Application: Highway / Mountain Roads
CS400 Track
COF: μ0.56
Temperature: 100-900°C
Application: Track Days
CS450 Endurance Track
COF: μ0.57
Temperature:100-1100°C
Application: Endurance Racing
Configuration Options
Standard Performance Package
- IC10 Ten Piston Calipers
- Brake Discs
- Selected Brake Pads
- Mounting Components
Carbon Ceramic Package
- IC10 Ten Piston Calipers
- Carbon Ceramic Brake Discs
- Performance Brake Pads
- Installation Components
Product Specifications
| Specification | Details |
|---|---|
| Brand | ICOOH |
| Model | IC10 |
| Caliper Type | Fixed Multi-Piston Caliper |
| Piston Number | 10 Pistons |
| Wheel Size | 20-22 Inch |
| Brake Disc Size | 400-440mm × 32mm |
| Brake Disc Option | Steel Disc / Carbon Ceramic Brake Disc |
| Brake Pad Option | CS100 / CS200 / CS400 / CS450 |
Vehicle Fitment
ICOOH IC10 is designed for selected high-performance vehicles, EVs, SUVs and powerful vehicle applications.
- Vehicle Brand
- Vehicle Model
- Production Year
- Wheel Size
- Wheel Offset
- Current Brake System
FAQ
Can IC10 fit 19 inch wheels?
No. IC10 requires 20 inch wheels and above due to its large caliper size and brake disc requirements.
Does IC10 support Carbon Ceramic Brake Disc?
Yes. Carbon Ceramic Brake Disc is available as an optional upgrade configuration.
Which brake pad should I choose?
CS100 is suitable for daily street driving. CS200 is suitable for performance street use. CS400 and CS450 are designed for track applications.
