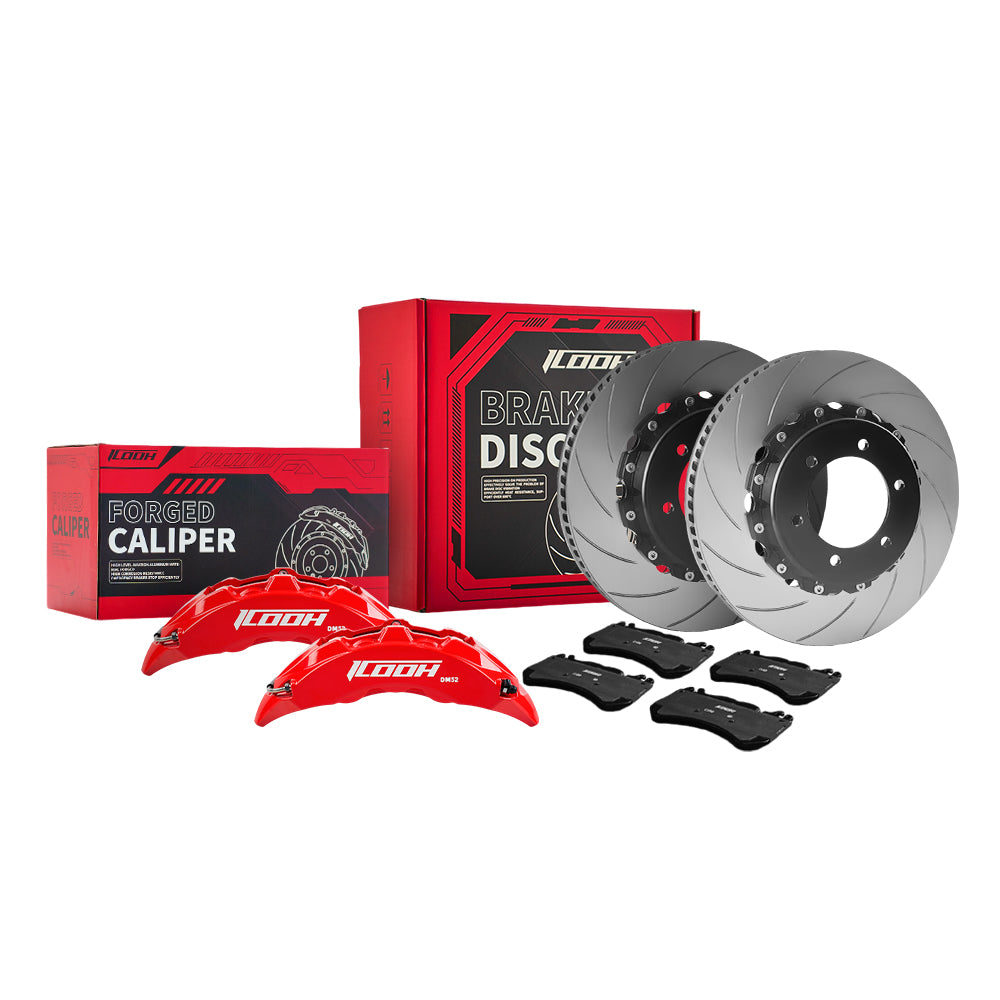

ICOOH DM5 Mercedes-Benz Front Big Brake Kit

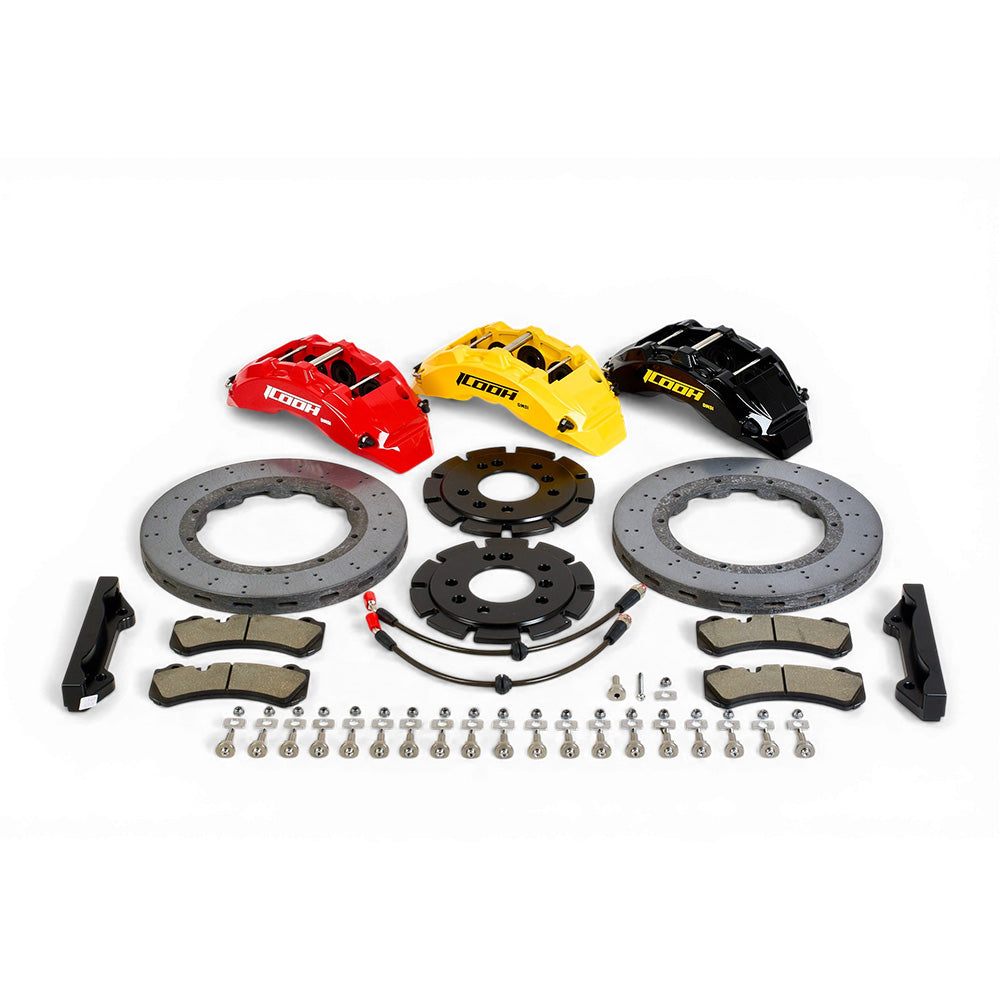

The ICOOH DM5 Mercedes-Benz front brake kit is developed for selected Mercedes-Benz chassis requiring stronger front braking performance, more responsive pedal control, and improved heat management. The kit combines DM5 6-piston front calipers with 330×32mm or 355×32mm brake disc options for 17-inch and 18-inch wheel applications.

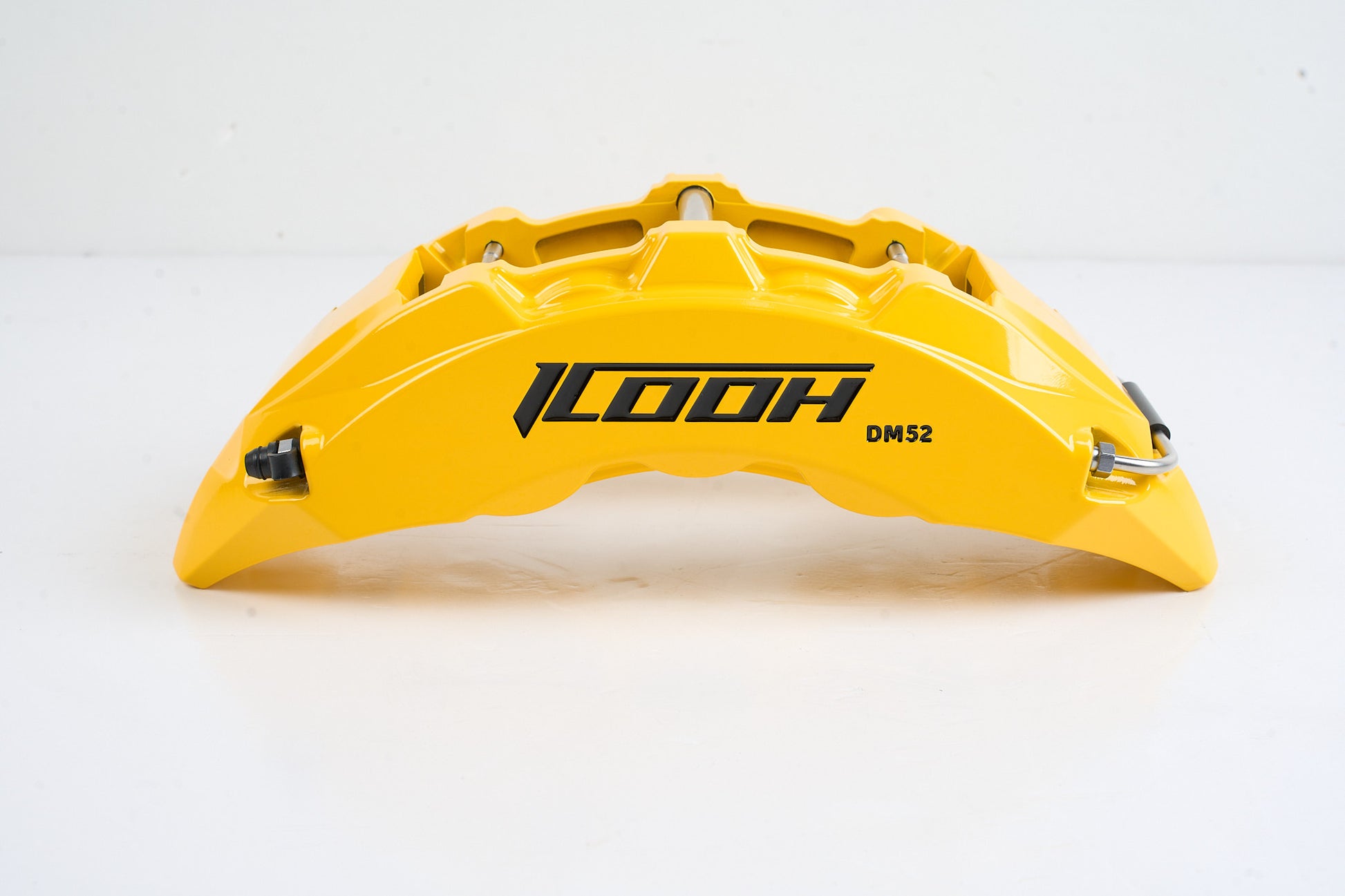

DM5 6-Piston Caliper
The multi-piston front caliper layout supports controlled pressure distribution, responsive braking input, and consistent pedal feel.
330mm / 355mm Disc Options
Choose between 330×32mm and 355×32mm front brake discs according to chassis fitment, wheel size, and available internal clearance.
Mercedes-Benz Chassis Fitment
Applications are organized by model, production year, chassis code, front axle structure, and related vehicle platform.
17–18 Inch Wheel Matching
The 330mm option is generally matched with 17-inch wheels, while the 355mm option is generally matched with 18-inch wheels.
Generally recommended for 17-inch wheels. This is the base configuration recorded in the supplied Mercedes-Benz fitment data.
Generally recommended for 18-inch wheels. Final availability depends on the chassis, bracket configuration, wheel offset, inner barrel diameter, and spoke clearance.
Brake Kit Specification
| Brand | ICOOH |
|---|---|
| Vehicle Brand | Mercedes-Benz |
| Brake Kit Series | DM5 Series |
| Axle Position | Front axle |
| Caliper Model | DM5 |
| Caliper Type | 6-piston front brake caliper |
| Brake Disc Options | 330×32mm / 355×32mm |
| Recommended Wheel Size | 17-inch for 330mm / 18-inch for 355mm |
| Installation Position | Front wheel |
| Fitment Type | Vehicle-specific front brake upgrade with mandatory wheel and chassis clearance verification |
Mercedes-Benz DM5 Fitment List
The supplied Mercedes-Benz fitment data validates the 330×32mm configuration for the applications below. A 355×32mm upgrade may also be available, but must be confirmed according to the exact chassis, bracket, wheel diameter, offset, inner barrel, and spoke clearance before checkout.
| Mercedes-Benz model | Year | Position | Caliper | Disc options | Wheel guide | Compatible chassis / notes |
|---|---|---|---|---|---|---|
| Mercedes-Benz E400 W212 | 2013–2016 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm exact trim, original brake setup, and wheel clearance. |
| Mercedes-Benz S-Class W221 | 2005–2015 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm engine version and original front braking system. |
| Mercedes-Benz S320 W222 | 2013+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related applications may include S450 C217 and AMG S63 W222. Confirm the exact chassis and factory brake configuration. |
| Mercedes-Benz S-Class W223 | 2020+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm exact trim, front hub, and wheel clearance. |
| Mercedes-Benz SLK300 R171 | 2008–2013 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related applications may include R170 and W209 front platforms. Chassis confirmation is required. |
| Mercedes-Benz GLB200 X247 | 2019+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm wheel offset and spoke-to-caliper clearance. |
| Mercedes-AMG GT C190 | 2015+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm the exact AMG GT variant and original braking system before ordering. |
| Mercedes-Benz E200 C207 | 2013–2017 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm exact chassis and wheel specification. |
| Mercedes-Benz GLK300 X204 | 2011–2016 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm original front hub and suspension configuration. |
| Mercedes-Benz C260 W204 | 2010–2014 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related applications may include C203, C204, and C207. Confirm the exact chassis code. |
| Mercedes-Benz R350 W251 | 2004–2015 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related applications may include R320 W251 from 2013, GL550 X164 from 2006–2013, and ML350 W164 from 2005–2011. |
| Mercedes-Benz R320 W251 | 2013+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm exact model year and front hub structure. |
| Mercedes-AMG G63 W463-1 | 2012+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | First-generation W463 platform. Do not select this fitment for W463-2 without confirmation. |
| Mercedes-AMG G55 W463-1 | 1999+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Older W463-1 platform; confirm the production year. |
| Mercedes-Benz G500 W463-1 | 2003+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related applications may include G350 W463-1 from 2003 and G550 W463-1 from 2015. |
| Mercedes-Benz G500 W463-2 | 2018+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related applications may include G350, G550, and AMG G63 W463-2 from 2018. |
| Mercedes-Benz CLA200 C118 | 2020+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm the exact C118 version and wheel clearance. |
| Mercedes-AMG CLA35 C118 | 2021+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Direct-knuckle application indicated in the fitment data. Final chassis confirmation is still required. |
| Mercedes-Benz W124 | 1984–1995 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Confirm body style, hub configuration, and any existing suspension or wheel modifications. |
| Mercedes-Benz GLS400 X166 | 2015+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related Mercedes-Benz applications may include GLE400 C292, AMG GLE43 C292, and GLE W166. |
| Mercedes-Benz GLE350 W167 | 2018+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related applications may include AMG GLE53 C167 and W167/X167 front platforms. |
| Mercedes-Benz A200 W176 | 2010–2018 | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related applications may include X156 and C117 front platforms. Confirm the exact model. |
| Mercedes-Benz A200 W177 | 2019+ | Front | DM5 | 330×32mm; 355×32mm subject to confirmation | 17-inch / 18-inch | Related front platforms may include Z177 and C177. Confirm the chassis before ordering. |
Fitment Confirmation Before Checkout
A matching model name or production year does not by itself confirm brake-kit compatibility. Mercedes-Benz vehicles may use different hubs, knuckles, factory brake packages, wheel offsets, and spoke profiles within the same chassis generation.
- Confirm the exact Mercedes-Benz model and production year.
- Provide the chassis code, such as W204, W212, W222, X247, C118, or W463.
- Confirm whether the 330×32mm or 355×32mm configuration is required.
- Provide the wheel diameter, width, and offset.
- Confirm whether the wheels are original or aftermarket.
- Check the inner barrel and spoke-to-caliper clearance.
- Disclose previous hub, suspension, spacer, or wheel modifications.
- Provide clear photos of the wheel face and original front brake system.
The 330×32mm DM5 configuration is generally recommended for 17-inch wheels, while the 355×32mm configuration is generally recommended for 18-inch wheels. Wheel diameter alone does not guarantee clearance; the inner barrel, spoke profile, wheel offset, and caliper position must all be verified before ordering.
Confirm Your Mercedes-Benz Fitment
Send your model, year, chassis code, preferred brake disc size, wheel specifications, and front wheel photos before checkout. ICOOH can help verify the appropriate DM5 configuration for your vehicle.
