Big Brake Kit Wheel Clearance: How to Measure It Correctly

July 18, 2026

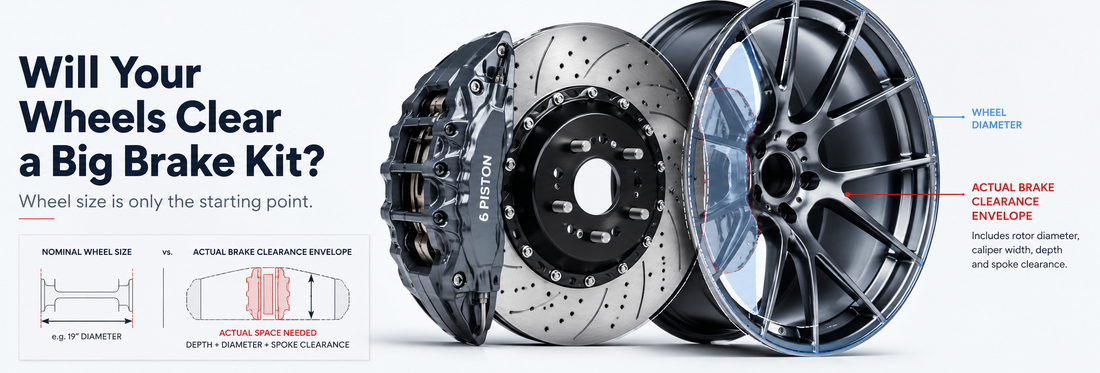

Will Your Wheels Clear a Big Brake Kit?

An 18-inch wheel does not automatically clear an 18-inch big brake kit.

Wheel diameter is only a nominal size. Actual brake clearance depends on the space inside the wheel: the spoke backs, inner barrel, barrel step-down shoulder, balance weights, and the caliper’s position relative to the wheel mounting face.

Two wheels can share the same diameter, width, and offset while providing very different caliper clearance. Their spoke curvature, face profile, and inner-barrel geometry may be completely different.

The easiest way to understand the problem is this:

Wheel diameter tells you whether the doorway might be large enough. The clearance template tells you whether the object can actually pass through it.

The real question is not whether the wheel is labeled 18 inches.

It is whether the exact brake-kit envelope fits inside the exact wheel through a complete rotation, while preserving the minimum clearance specified by the brake manufacturer.

Before ordering a BBK, use the manufacturer’s template or installation profile for that exact kit. Print it at true 1:1 scale, mount it on thin rigid card, seat it against the wheel mounting face, and rotate it through the wheel.

The result should fall into one of four categories:

Wheel-Envelope PASS
CONDITIONAL PASS
FAIL
INCONCLUSIVE

That framework replaces “it looks close” with a decision that can be measured, photographed, and reviewed.

The Fast Answer

To check whether your wheels will clear a big brake kit:

Identify the exact BBK part number and axle.
Download the matching manufacturer template.
Print it at 100% or Actual Size.
Verify every printed reference dimension.
Mount the profile on thin rigid card.
Seat it flat against the wheel mounting face.
Rotate it through a complete 360 degrees.
Check the spoke backs, inner barrel, and balance weights.
Measure the smallest remaining gap.
Compare that gap with the minimum stated in the exact kit document.

Visible non-contact is only the first filter. The measured gap must also meet the manufacturer’s requirement.

1. Why Wheel Diameter Is Not Enough

A common assumption sounds perfectly reasonable:

The brake kit requires 18-inch wheels, and my car already has 18-inch wheels, so the kit should fit.

That conclusion ignores most of the geometry that matters.

Inside a wheel, the brake assembly may encounter:

Flat or deeply concave spokes
Thick spoke roots
Local reinforcing ribs
A narrowing inner barrel
A pronounced drop center
Barrel step-down shoulders
Adhesive balance weights
Valve and TPMS hardware

A caliper may clear the general barrel diameter and still collide with the back of a spoke. Another wheel may provide excellent spoke clearance but become too narrow near the drop center.

This explains why a nominal wheel-size requirement should be treated as a starting point rather than fitment approval.

The actual test is three-dimensional.

2. BBK Clearance Is a Three-Dimensional Envelope Problem

A manufacturer template usually represents a radial-and-axial cross-section of the brake package. Rotating that profile through the wheel tests whether the required circumferential space remains available.

Three wheel-side clearance directions must be checked. A fourth, separate inspection covers the rest of the vehicle.

2.1 Axial spoke clearance

Axial spoke clearance is the space between the outer face of the caliper and the backs of the wheel spokes.

It depends on:

Caliper outboard projection
Wheel mounting-pad position
Wheel offset
Spoke concavity
Spoke thickness
Spoke-root reinforcement
Front or rear wheel-face design

A wheel may be large enough radially while failing because the spokes sweep inward toward the caliper.

A spacer may sometimes improve this dimension because it moves the wheel and its spokes outward.

2.2 Radial barrel clearance

Radial barrel clearance is the space between the top of the caliper and the inner wheel barrel.

It depends on:

Rotor diameter
Caliper radial height
Usable barrel diameter
Drop-center shape
Barrel step-down shoulder
Local ribs and reinforcing features

Moving the wheel outward does not enlarge its barrel.

When the caliper crown interferes with the barrel step-down shoulder or drop-center region, the usual solution is a different wheel profile or a smaller brake envelope.

2.3 Circumferential obstacles

A wheel may clear at one spoke opening and interfere elsewhere.

As the wheel rotates, the brake envelope may encounter:

Adhesive balance weights
Clip-on weights
Valve hardware
TPMS components
Asymmetrical spoke sections
Local barrel ribs
Casting or forging transitions

AP Racing’s P16.132 profile instructs the user to locate the template on the wheel spigot, rotate it, and pay attention to balance weights.

Passing one spoke opening is therefore not enough.

The profile needs to clear throughout a full 360-degree rotation.

2.4 Vehicle-side clearance

Wheel-to-caliper clearance is only one part of the final installation.

The completed wheel-end assembly must also clear:

Control arms
Steering links
Struts
Uprights
Brake hoses
ABS wiring
Inner wheel liners
Fender edges
Nearby suspension hardware

These are separate checks because steering and suspension motion generally move the wheel and caliper together. Lock-to-lock and suspension-travel inspections are primarily used to verify the brake hose, tire, caliper, and wheel position against the rest of the vehicle.

BBK Clearance Is a Three-Dimensional Envelope Problem

3. What You Need Before Measuring

Reliable fitment testing does not require exotic equipment. It requires accurate references and repeatable setup.

Prepare:

Exact brake-kit part number
Correct axle: front or rear
Caliper model
Rotor diameter and thickness
Actual wheel being tested
Wheel brand and model
Diameter and width
Offset
Face or concavity designation
Wheel part number
Official clearance template
Thin rigid card
Steel rule or vernier caliper
Feeler gauges or known-thickness plastic shims
Camera or phone for documenting the test

A wheel description such as “18-inch Brand X” is incomplete.

The same wheel model may use different internal profiles depending on:

Width
Offset
Concavity
Front or rear application
Design revision
Specific part number

Fitment evidence is only useful when it can be tied to one exact wheel specification.

4. The 1:1 Manufacturer Template Test

Whenever the brake manufacturer provides an official template, use it as the primary fitment method.

Step 1: Confirm that the template matches the exact kit

Check:

Drawing number
Brake-kit part number
Front or rear axle
Caliper model
Rotor diameter
Rotor thickness
Bell or hat position where stated

A profile from a similar-looking caliper is not an acceptable substitute.

Small changes in caliper width, bridge shape, rotor offset, or bracket position can move the envelope enough to create interference.

If the profile cannot be tied to the exact kit being purchased, record the result as INCONCLUSIVE.

Step 2: Print at Actual Size

Open the printer settings and select:

100%
Actual Size
No Scaling

Disable:

Fit to Page
Shrink to Fit
Scale to Printable Area

Use the paper size specified by the drawing.

AP Racing profile P16.132 includes a direct instruction to leave Fit to Page unchecked.

The same drawing provides 25 mm reference dimensions for checking the printed scale. Measure those references before proceeding.

EBC’s TPL030 template uses two 35 mm reference dimensions and tells the user to confirm that the drawing printed at the correct scale.

Step 3: Verify every reference dimension

Measure the printed scale references before cutting the template.

If a line marked 25 mm measures 24 mm, the profile is undersized and the result is invalid.

An apparently small percentage error can produce a large geometric error. For an illustrative 200 mm profile:

A 3% reduction removes 6 mm
A 5% reduction removes 10 mm

Either error could hide a genuine interference point.

Do not proceed until the printed reference dimensions match the drawing.

Step 4: Mount the profile on thin rigid card

Plain printer paper bends and follows the wheel’s contours. That can make the brake profile appear smaller than it really is.

Use:

Thin card stock
Stiff construction paper
Another thin, dimensionally stable backing

Avoid:

Thick foam board
Corrugated cardboard
Warped card
Soft compressible material

The backing must hold the profile flat without moving it away from the wheel mounting face.

Both the AP Racing P16.132 profile and EBC TPL030 template instruct users to attach the print to card before cutting it.

Step 5: Cut the profile accurately

Follow the specified cut line.

Cut the wheel-spigot or center-locating feature carefully. An oversized or irregular center opening can allow the template to shift, tilt, or sit at the wrong radius.

The profile must occupy the same geometric location as the installed brake package.

Step 6: Seat the profile against the wheel mounting face

Place the wheel inner side up on a stable surface.

Position the template so that its reference section rests flat against the wheel mounting pad.

Check that:

The template is centered
The backing does not rest on the center-bore chamfer
No rib is holding the template away from the mounting face
Tape is not creating a false spacer
The profile remains square to the wheel axis

An off-axis profile introduces parallax and geometric measurement errors.

Step 7: Rotate through 360 degrees

Keep the template seated and rotate it relative to the wheel through a complete circle.

Inspect:

Every spoke
Every spoke root
Reinforcing ribs
Barrel shoulders
Drop-center areas
Balance weights
Valve and TPMS regions

AP Racing and EBC both instruct users to locate the template through the wheel-spigot reference and rotate it during the test.

Step 8: Measure the tightest point

The result is determined by the smallest gap found during the complete rotation.

Useful tools include:

Feeler gauges
Calibrated plastic shims
Manufacturer-supplied clearance blocks
Known-thickness non-marring gauges

A steel rule is suitable for checking the printed scale. It is often too thick or too coarse for measuring a narrow wheel-to-template gap.

When the minimum gap cannot be measured reliably, classify the result as INCONCLUSIVE.

5. How Much Clearance Is Required?

There is no universal BBK wheel-clearance value.

The required number belongs to the exact kit and the exact manufacturer document.

Manufacturer document	Application	Specified wheel clearance
AP Racing P16.132	CP7600-1000:G4 installation profile	4.00 mm minimum
EBC TPL030	Mazda MX-5 ND, 330 × 28 mm brake package	3.00 mm minimum on all edges
EBC Apollo individual-caliper guide	Individually engineered Apollo caliper installations	5.00 mm minimum; 7.00 mm recommended where achievable

AP Racing’s P16.132 drawing states a minimum wheel clearance of 4.00 mm.

EBC’s TPL030 template requires at least 3 mm on all edges for the specified Mazda MX-5 ND 330 × 28 mm package.

EBC’s individually sold Apollo caliper guide requires 5.0 mm between the caliper and both the wheel spokes and wheel barrel. The same document recommends 7.0 mm where that additional clearance can be achieved.

These values belong to different products and documents. They cannot be exchanged according to whichever figure produces a passing result.

The correct procedure is:

Use the minimum clearance printed on the exact template or installation guide for the exact kit.

5.1 Wheel clearance and vehicle-side clearance are different standards

The EBC Apollo document contains several different clearance values because it addresses different geometric relationships.

For wheel-to-caliper clearance, it states:

5.0 mm minimum between the caliper logo face and wheel spokes
5.0 mm minimum between the caliper top profile and wheel barrel
7.0 mm recommended where achievable

For brake-to-vehicle clearance, it separately states:

4.0 mm minimum between the brake system and surrounding structures throughout steering and suspension movement

For rotor-to-caliper clearance, it also specifies:

2.5 mm minimum between rotor outside diameter and the inside of the caliper bridge
At least 1.5 mm between the caliper body and the rotor faces after centering

These are independent checks. A 4 mm suspension-clearance requirement does not replace the 5 mm wheel-clearance requirement in that document.

5.2 Why a visible gap may still fail

A small static gap provides little allowance for:

Wheel flex
Hub-bearing movement
Manufacturing tolerances
Assembly tolerances
Balance-weight position
Actual-part variation

EBC specifically links its 5 mm Apollo wheel-clearance requirement to flex in the hub bearing, wheel rim, and suspension components during hard driving.

Rotor thermal expansion is a separate issue. The same EBC document states that a hot rotor may grow in diameter by up to 2.0 mm, which is why rotor-to-caliper-bridge clearance must also be maintained. That figure does not describe the spoke-to-caliper gap.

6. When No Official Template Exists

When no official template is available, use the strongest evidence source you can obtain.

Recommended order:

Official full-size installation profile
Official dimensional drawing
Brake-manufacturer technical confirmation
Wheel-manufacturer CAD comparison
Professional 3D or CAD overlay
Manual measurement as a screening method

Manual measurement is most useful for rejecting a combination that is clearly too tight. Close-fit approvals require stronger evidence.

6.1 Separate the two axial dimensions

Two different measurements are involved in an axial-clearance comparison.

Wheel X-Factor

In common wheel-fitment usage, wheel X-Factor describes the available space between the wheel mounting-face reference plane and the nearest point on the back of the spoke.

It is a wheel-side capacity measurement.

Caliper outboard projection

The brake-side measurement is the distance that the caliper extends outward from the corresponding installed reference plane.

Depending on the drawing, that reference may be:

Rotor mounting plane
Brake-hat mounting plane
Wheel mounting plane
Another explicitly defined installation plane

This value should be called caliper outboard projection, axial caliper envelope, or the term used by the brake manufacturer.

The comparison is valid only when both measurements share the same reference plane and direction.

Do not use “X-Factor” for both the wheel space and the caliper projection.

6.2 The crossed steel-rule method

For a practical wheel-side pre-check, use:

Two rigid steel rules, or
One steel straightedge and the depth rod of a vernier caliper

The first tool establishes the wheel mounting-face reference plane. The second measures the distance to the innermost spoke apex.

Prepare the wheel

Place the wheel inner side up on a stable, level surface.

Clean the wheel mounting pad. Dirt, corrosion, casting flash, or adhesive residue may tilt the straightedge and corrupt the measurement.

Avoid measuring with the wheel leaning against a wall. The wheel axis should remain as close to vertical as the working setup allows.

Establish the mounting-face reference

Lay the first steel rule or straightedge across the true wheel mounting pad.

It should not rest on:

The center-bore chamfer
Raised lettering
A casting rib
Surface debris

Check for rocking. The rule must remain flat and stable.

Measure to the innermost spoke apex

At the radial height where the caliper body will pass, position the second rule or caliper depth rod perpendicular to the reference straightedge.

Measure to the closest feature on the spoke back.

The limiting point may be:

The innermost spoke apex
A reinforcing rib
The spoke-root transition
A local casting or forging boss

The most convenient flat section is rarely the correct point. The limiting feature is whatever the caliper would contact first.

Control the angle

A diagonal measurement overstates the available space.

Use a small machinist’s square when access allows. Remove and reinstall the tools, then repeat the reading.

A marginal result should not be accepted unless the measurement can be reproduced consistently.

Repeat across multiple positions

Measure:

At the upper caliper radius
At the middle caliper radius
At the lower caliper radius
Behind every distinct spoke design
Near spoke roots
Near local reinforcements

Record the smallest repeatable value.

Do not average the measurements.

Compare the wheel capacity with the caliper projection

Example:

Wheel X-Factor at the limiting point: 46 mm
Caliper outboard projection from the matching plane: 52 mm

The wheel fails the axial pre-check by 6 mm.

A second example:

Wheel X-Factor: 54 mm
Caliper outboard projection: 52 mm

The nominal remaining space is 2 mm. Whether that is acceptable depends on:

The exact manufacturer clearance requirement
The accuracy of both reference planes
The repeatability of the manual measurement
The measurement uncertainty

Without reliable control of those factors, the result remains INCONCLUSIVE.

6.3 Limits of manual measurement

The crossed-rule method is far better than placing a flexible tape inside the wheel, but it is not zero-error metrology.

Possible error sources include:

Curved spoke surfaces
Uneven mounting pads
Tool misalignment
Incorrect radial measurement position
Human reading error
Rule or gauge thickness
Wheel asymmetry
Incomplete brake dimensions

In practice, manual measurement works best as a rejection tool.

A clearly undersized wheel can be ruled out. A combination with only a few millimeters of nominal margin should be checked using an official profile, manufacturer CAD, or physical trial fit.

7. Wheel Spacers: Evaluate Geometry, Centering, and Hardware

A spacer changes the axial position of the wheel.

When the interference is between the caliper’s outer face and the spoke back, moving the wheel outward may create additional axial clearance.

A spacer does not enlarge:

Inner-barrel diameter
Radial caliper clearance
Drop-center clearance
Clearance at the barrel step-down shoulder

EBC states that interference between the top of the caliper and the wheel barrel cannot be corrected with a spacer.

7.1 Measure hub-pilot engagement

The hub lip or pilot helps position the wheel concentrically.

A slip-on spacer reduces the amount of the original hub pilot that remains available to locate the wheel.

The result depends on:

Exposed hub-lip length
Spacer thickness
Wheel center-bore depth
Center-bore chamfer
Spacer center-bore accuracy
Presence of a replacement locating lip

A universal “anything over 5 mm is unsafe” rule ignores these variables.

Measure the actual hub, spacer, and wheel.

7.2 Understand the clamped wheel joint

The hub pilot helps establish concentric positioning.

Wheel bolts or studs create the clamp force that holds the mating faces together.

Reliable installation requires:

Correct centering
Clean contact surfaces
Full face contact
Correct fastener seat
Adequate thread engagement
Manufacturer-specified torque

The hub lip should not be described as carrying all braking force.

Fasteners should not be treated as though they work independently from the contact surfaces and centering system.

BBS requires the hub adapter to fit without play, specifies the use of appropriate centering components, and publishes minimum thread-engagement requirements for different fastener sizes. It also instructs installers to use the vehicle manufacturer’s torque specification.

7.3 Spacer decision zones

Spacer decisions are better classified by engineering conditions than by thickness alone.

Verified conditional fit

A spacer-based setup may qualify for a CONDITIONAL PASS when:

The exact BBK documentation permits spacer use
The original interference is axial
Concentric location is maintained
The spacer sits fully against the hub
The wheel sits fully against the spacer
Correct fasteners provide sufficient thread engagement
Tire-to-fender clearance is verified
Tire-to-suspension clearance is verified
Local regulations permit the setup
The template test is repeated in the new wheel position

Professional verification required

Obtain qualified inspection when:

Remaining hub-pilot engagement is uncertain
The wheel center-bore chamfer affects seating
Extended studs or bolts are required
The tire is already close to the fender or strut
Track-width change is substantial
Spacer documentation is incomplete
Brake clearance remains marginal

Reject the setup

Do not proceed when:

The BBK manufacturer prohibits separate spacers
The spacer does not locate concentrically
Multiple spacers are stacked
Thread engagement is insufficient
The spacer or wheel does not sit flat
The wrong fastener seat is used
The interference is radial
The wheel or caliper requires grinding
Tire or wheel contact is created elsewhere

8. Post-Installation Validation

The printed profile supports the purchase decision. Final approval comes from the installed hardware.

Separate the inspection into wheel-side and vehicle-side checks.

8.1 Wheel-side validation

Install the wheel using the specified hardware and torque procedure.

Rotate it slowly through a complete revolution.

Inspect:

Every spoke region
Caliper crown to barrel
Barrel step-down shoulder
Drop-center region
Balance weights
Valve and TPMS hardware

Look for:

Scraping noises
Intermittent ticking
Fresh polished marks
Removed caliper paint
Disturbed balance weights

A fresh witness mark confirms physical contact and requires correction before further use.

8.2 Full steering-lock inspection

For the front axle, turn the steering from full left lock to full right lock.

Watch:

Flexible brake hoses
Hose brackets
ABS wiring
Caliper-to-control-arm clearance
Tire-to-strut clearance
Tire-to-liner clearance
Spacer-related outer-wheel movement

The hose must remain free from:

Tension
Twisting
Tire contact
Wheel contact
Tight bends
Pinch points

8.3 Suspension compression and rebound sweep

A qualified technician should inspect the installation through a representative suspension range using appropriate workshop equipment.

Check:

Brake-hose routing
Hose-to-strut clearance
Brake-to-suspension clearance
Tire-to-fender clearance
Tire-to-liner clearance
ABS-wire routing
Spacer-related changes

EBC’s Apollo individual-caliper guide requires the suspension to be cycled from bump to rebound and the steering to be moved lock-to-lock. The same document specifies 4.0 mm minimum between the brake system and surrounding vehicle structures. This is separate from its 5.0 mm wheel-to-caliper requirement.

Never work beneath an unsupported vehicle or suspension assembly.

8.4 Track-day inspection

Before the first demanding session:

Follow the specified wheel-fastener torque procedure
Inspect all balance weights
Check hose clips and brackets
Confirm free wheel rotation
Photograph the tightest areas

After a low-load shakedown:

Inspect spoke backs
Inspect the inner barrel
Look for witness marks
Recheck hose routing
Investigate new metallic noises

Follow the vehicle, wheel, brake-kit, spacer, and fastener manufacturers’ inspection instructions rather than applying one universal re-torque interval.

9. PASS, CONDITIONAL PASS, FAIL, or INCONCLUSIVE

Scope of the result

A Wheel-Envelope PASS confirms that the tested wheel clears the specified brake profile by the required amount under the recorded cold, static test conditions.

It does not confirm:

Brake-hose routing
Suspension clearance
Tire-to-body clearance
Spacer suitability
Fastener suitability
Regulatory compliance
Correct hydraulic installation

Decision table

Result	Meaning	Required evidence
Wheel-Envelope PASS	The unmodified wheel meets the exact kit’s wheel-clearance requirement	Correct profile, verified scale, correct seating, 360° rotation, and required minimum gap
CONDITIONAL PASS	Fitment depends on a defined, permitted modification	Modification documented, test repeated, and all secondary risks checked
FAIL	The wheel does not contain the required brake envelope	Contact, insufficient margin, radial interference, or prohibited remedy
INCONCLUSIVE	Available evidence cannot support a reliable decision	Incorrect profile, uncertain references, inaccurate scale, or unmeasurable margin

Wheel-Envelope PASS

Use this result when:

The template matches the exact kit
Print scale is verified
The template is correctly seated
It clears throughout 360°
Balance weights are included
The minimum gap meets the exact requirement
No unverified modification is required

CONDITIONAL PASS

Use this result when:

A manufacturer-permitted spacer creates adequate axial clearance
Balance weights can be professionally relocated
Another clearly defined modification resolves the interference
The complete test is repeated afterward
Vehicle-side clearance is verified

Document every condition.

FAIL

Use FAIL when:

The profile contacts a spoke
The caliper interferes with the barrel
A balance weight enters the envelope
The measured gap is below the specified minimum
A prohibited spacer is required
Grinding would be necessary
The interference cannot be corrected safely

INCONCLUSIVE

Use INCONCLUSIVE when:

The template does not match the kit
Scale cannot be verified
The profile cannot be seated properly
No official drawing exists
Reference planes do not match
The minimum gap cannot be measured reliably
Only rough manual measurements are available

An inconclusive result records the limit of the available evidence. Obtain stronger data before committing to a costly or non-returnable purchase.

10. BBK Wheel-Clearance Worksheet

Item	Record
Vehicle make/model/year
Axle	Front / Rear
Brake-kit part number
Caliper model
Rotor diameter and thickness
Wheel brand and model
Wheel diameter and width
Wheel offset
Wheel part number / face profile
Template drawing number
Expected reference dimension
Measured reference dimension
Manufacturer-required wheel clearance
Minimum axial spoke clearance
Minimum radial barrel clearance
Balance-weight clearance
Spacer or modification required
Modification permitted by kit documentation	Yes / No / Unknown
Final result	PASS / CONDITIONAL / FAIL / INCONCLUSIVE

Worksheet measurement conditions: Unless otherwise stated, record all dimensions in millimeters under cold, static workshop conditions. Wheel-side axial measurements must use the wheel mounting face as the reference plane. Record the exact tool and radial measurement location when manual measurements are used.

Photo evidence checklist

Photograph:

Template drawing number
Printed reference dimension
Scale-verification measurement
Template seated against the wheel mounting face
Closest spoke position
Closest barrel position
Balance-weight area
Gauge showing the smallest gap
Wheel part-number marking

Clear photographs allow the brake supplier, wheel manufacturer, or installer to audit the conclusion instead of relying on a verbal description.

11. Five Mistakes That Invalidate the Test

Using the wrong template

A visually similar caliper or identical rotor diameter does not prove that the envelope is the same.

Allowing the printer to scale the drawing

An undersized template creates a false margin.

Using flexible paper or thick backing

Flexible paper bends around interference. Thick backing shifts the reference plane.

Failing to seat the template correctly

The profile must sit on the wheel mounting-face reference plane and remain aligned with the wheel axis.

Checking only one spoke opening

Complete testing requires 360-degree rotation, including the balance-weight and valve regions.

Frequently Asked Questions

Will any 18-inch wheel fit an 18-inch BBK?

No.

Nominal diameter does not describe the spoke backs, barrel shoulders, drop center, or balance-weight position.

Is 2 mm of clearance enough?

Only when the exact kit documentation explicitly permits that margin.

AP Racing P16.132 requires 4 mm. EBC TPL030 requires 3 mm for its specified application, while EBC’s individual Apollo-caliper document requires 5 mm and recommends 7 mm where achievable.

Can a spacer solve barrel interference?

No.

A spacer moves the spokes outward but does not enlarge the barrel. EBC specifically states that caliper-top interference with the wheel barrel cannot be cured using a spacer.

What is wheel X-Factor?

Wheel X-Factor is the usable axial space from the wheel mounting-face reference plane to the limiting point on the spoke back.

The corresponding brake-side dimension should be treated separately as caliper outboard projection or axial caliper envelope.

Why did the template pass but the installed wheel rub?

Common causes include:

Incorrect print scale
Poor template seating
Balance weights added later
Missed local wheel geometry
Actual-component variation
Installation error
Measuring the wrong limiting point

Is manual measurement reliable without a template?

It can rule out an obviously unsuitable wheel.

Marginal results require stronger evidence because spoke and barrel surfaces are curved, irregular, and difficult to measure squarely.

For Performance Shops: Clearance Errors Consume Bay Time

For a private owner, incorrect fitment creates an expensive delay.

For a tuning shop, it affects the entire project:

Repeated wheel removal
Multiple spacer trials
Rebalancing
Replacement hardware
Caliper witness marks
Delayed delivery
An occupied lift
Reduced shop-bay turnover

The cheapest part on the invoice can become the most expensive once technician hours and lost bay capacity are included.

The strongest B2B promise is not a universal claim that every application fits without modification.

A more credible position is:

ICOOH provides vehicle-specific data matching, fitment documentation, and pre-order compatibility review to reduce unplanned spacer trials, fabrication, and workshop downtime.

Each application should be classified as:

Direct Fit
Conditional Fit
Professional Modification Required
Compatibility Not Yet Confirmed

An honest classification gives the installer a basis for pricing labor, reserving the bay, and managing customer expectations.

Final Decision

Wheel diameter answers only the first question.

The real purchasing decision depends on whether the exact brake profile fits inside the exact wheel through a full rotation and retains the clearance required by the manufacturer.

Use the correct template.

Verify the print scale.

Establish the mounting-face reference.

Rotate through 360 degrees.

Measure the limiting point.

Document the evidence.

Then assign the result:

PASS
CONDITIONAL PASS
FAIL
INCONCLUSIVE

A well-executed test may confirm that the current wheels can stay.

It may also prevent a brake kit from arriving at the workshop with nowhere to go.

Recommended CTA

Send ICOOH Your Wheel and Brake Fitment Data

Submit:

Vehicle model and year
Front or rear axle
Wheel brand and model
Wheel diameter, width, and offset
Wheel part number
Brake-kit configuration
Template drawing number
Minimum measured clearance
Clear template photographs

This information gives the technical team a stronger basis for reviewing compatibility before the order is confirmed.

Technical Sources

The numerical and procedural information in this article is based on:

AP Racing P16.132 for its 25 mm scale references, Fit to Page warning, 4.00 mm minimum wheel clearance, card-mounting instruction, wheel-spigot location, rotation requirement, and balance-weight warning.
EBC TPL030 for its two 35 mm scale references, 3 mm minimum clearance, wheel-spigot location, card mounting, and rotation instruction for the specified Mazda MX-5 ND 330 × 28 mm application.
EBC’s individually sold Apollo caliper guide for its separate 5 mm wheel-clearance, 7 mm preferred wheel-clearance, 4 mm brake-to-vehicle clearance, 2.5 mm rotor-to-bridge clearance, rotor thermal-growth, spacer, and steering/suspension-travel guidance.
BBS Unlimited installation guidance for centering components, mounting-face fit, vehicle-manufacturer torque, and fastener-specific minimum thread engagement.

The template and installation manual for the exact brake kit always take priority over general examples in this guide.

Back to blog

Country/region
